STDatasheet (PDF)

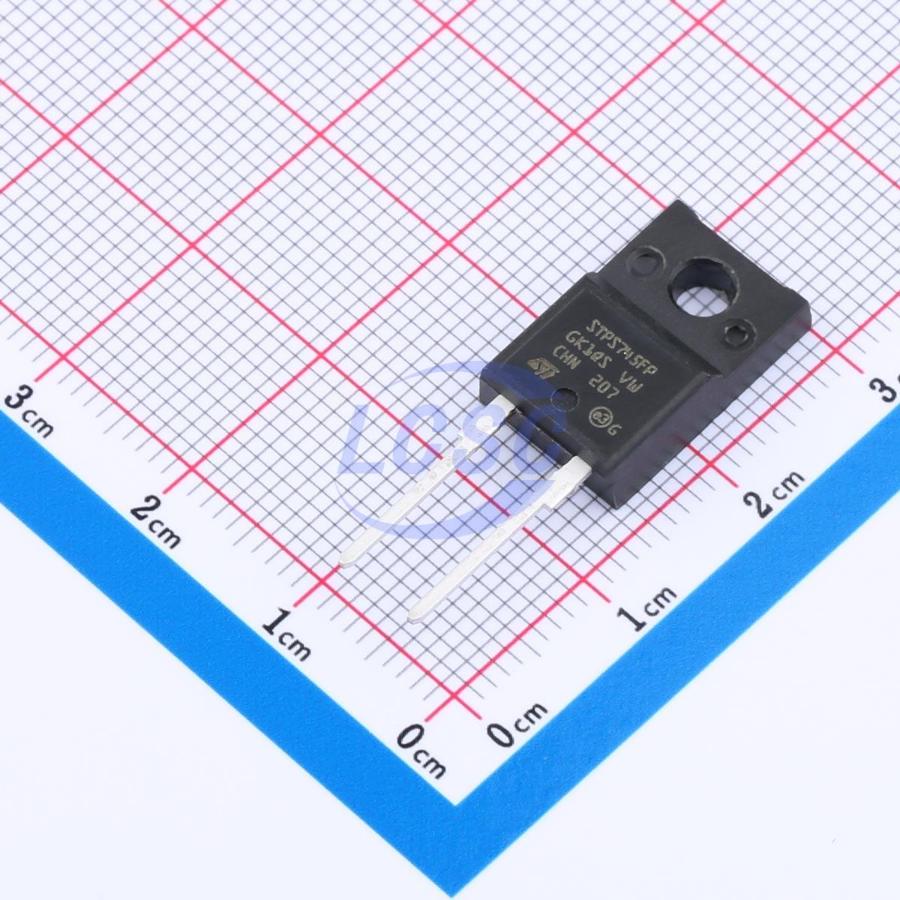

STPS745FP
Diode 1 Independent 45V 7.5A Through Hole TO-220FPAC
TO-220FPACROHS3 CompliantActive
DIODE SCHOTTKY 45V TO-220FPAC
- Manufacturer
- ST
- Manufacturer part #
- STPS745FP
- Store part #
- C2971372
- Package / case
- TO-220FPAC
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
153 in stock
#C2971372
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.83 | ₹96.83 |
| 10+ | ₹77.08 | ₹770.80 |
| 30+ | ₹67.20 | ₹2,016.00 |
| 100+ | ₹57.54 | ₹5,754.00 |
| 500+ | ₹51.53 | ₹25,765.00 |
| 1,000+ | ₹48.53 | ₹48,530.00 |
1 × ₹96.83
₹96.83
excl. GST
₹114.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STPS745FP
₹96.83 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 840mV@15A
- Reverse Leakage Current (Ir)
- 100uA@45V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 7.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.667 g
Overview
Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged either in TO - 220AC, TO - 220FPAC or D2PAK, this device is intended for use in low - voltage, high frequency inverters, free wheeling and polarity protection applications.
Applications
- Switching mode power supplies
- High-frequency DC-DC converters
- Low-voltage, high-frequency inverters
- Freewheeling applications
- Polarity protection applications
Key features
- Very small conduction losses
- Negligible switching losses
- Extremely fast switching
- Insulated package: TO - 220FPAC
- Insulating voltage = 2000 VRMS sine
- Avalanche capability specified
- ECOPACK®2 compliant component for D2PAK on demand
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBR10100F#C18216938Jingdao Microelectronics · ITO-220ACW | Jingdao Microelectronics | ITO-220ACW | 60 | ₹34.91 · 60 in stock | View |
 | MBR10200F#C18216479Jingdao Microelectronics · ITO-220ACW | Jingdao Microelectronics | ITO-220ACW | 40 | ₹36.46 · 40 in stock | View |
 | STF10100#C260416SMC · ITO-220AC | SMC | ITO-220AC | 90 | ₹60.20 · 90 in stock | View |
 | MBR10100FAC#C53403741YFW · TO-220FAC | YFW | TO-220FAC | 100 | ₹38.87 · 100 in stock | View |
 | MBRF1045#C260306SMC · ITO-220AC | SMC | ITO-220AC | 255 | ₹55.45 · 255 in stock | View |
