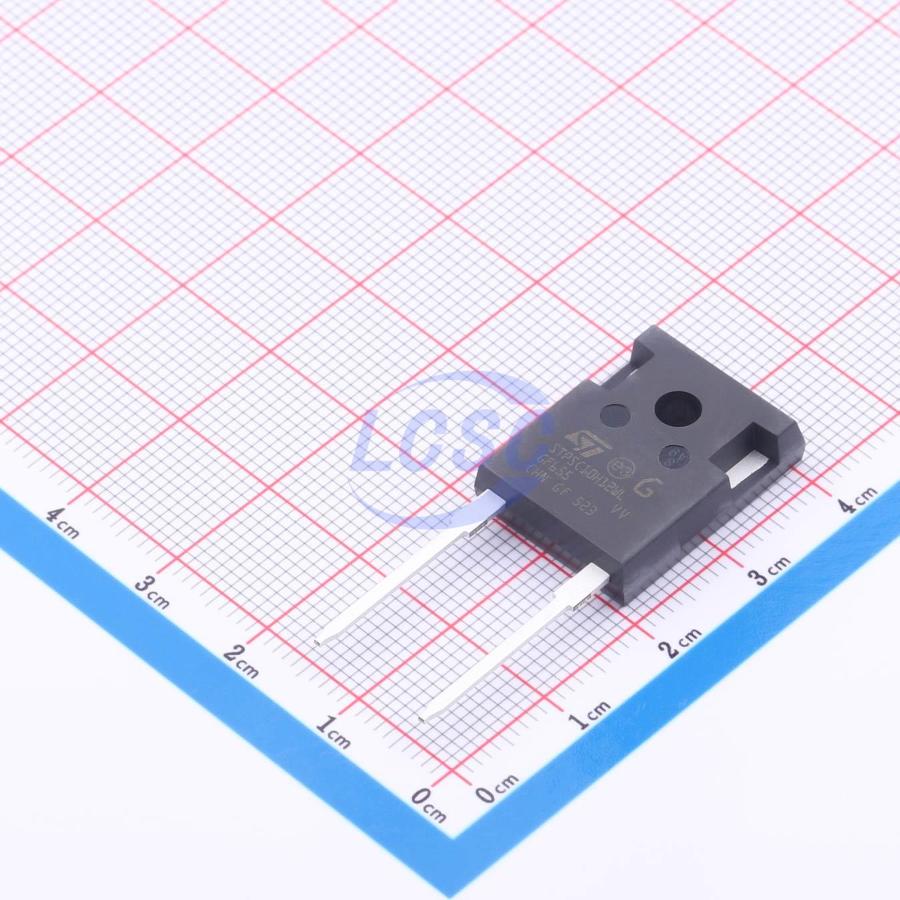

STPSC10H12WL
1.2kV 1.5V@10A 10A DO-247-2 Single Diodes RoHS
- Manufacturer
- ST
- Manufacturer part #
- STPSC10H12WL
- Store part #
- C2970728
- Package / case
- DO-247-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C2970728
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,224.79 | ₹1,224.79 |
| 10+ | ₹1,054.80 | ₹10,548.00 |
| 30+ | ₹951.38 | ₹28,541.40 |
| 100+ | ₹864.66 | ₹86,466.00 |
| 500+ | ₹853.60 | ₹4,26,800.00 |
1 × ₹1,224.79
₹1,224.79
excl. GST
₹1,445.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STPSC10H12WL
₹1,224.79 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Voltage - Forward(Vf@If)
- 1.5V@10A
- Reverse Leakage Current (Ir)
- 60uA@1200V
- Non-Repetitive Peak Forward Surge Current
- 71A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.26 g
Overview
The SiC diode, available in TO-220AC, DPAK HV, D²PAK and DO-247 LL, is an ultrahigh performance power Schottky rectifier. It is manufactured using a silicon carbide substrate. The wide band-gap material allows the design of a low VF Schottky diode structure with a 1200 V rating. Due to the Schottky construction, no recovery is shown at turn-off and ringing patterns are negligible. The minimal capacitive turn-off behavior is independent of temperature. Especially suited for use in PFC and secondary side applications, this ST SiC diode will boost the performance in hard switching conditions. This rectifier will enhance the performance of the targeted application. Its high forward surge capability ensures a good robustness during transient phases.
Applications
- PFC applications
- Secondary-side applications
Key features
- No or negligible reverse recovery
- Switching behavior independent of temperature
- Robust high voltage periphery
- Operating from -40 °C to 175 °C
- Low VF
- ECOPACK2 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AS3D010120C#C19194202AnBon · TO-247-2 | AnBon | TO-247-2 | 26 | ₹157.29 · 26 in stock | View |
 | ASYD010120C#C50132424AnBon · TO-247-2 | AnBon | TO-247-2 | 111 | ₹204.44 · 111 in stock | View |
