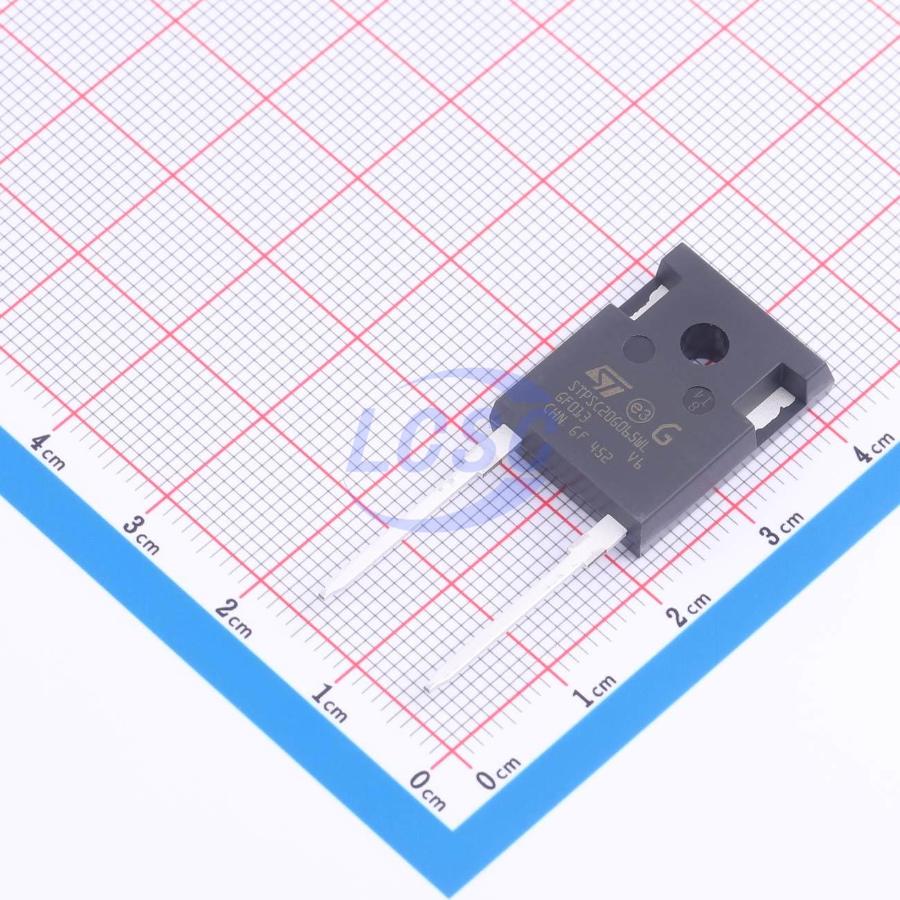

STPSC20G065WL
1 Independent 650V 1.45V@20A 20A DO-247LL Single Diodes RoHS
- Manufacturer
- ST
- Manufacturer part #
- STPSC20G065WL
- Store part #
- C47146830
- Package / case
- DO-247LL
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C47146830
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹755.17 | ₹755.17 |
| 10+ | ₹745.19 | ₹7,451.90 |
| 60+ | ₹738.70 | ₹44,322.00 |
| 120+ | ₹731.98 | ₹87,837.60 |
1 × ₹755.17
₹755.17
excl. GST
₹891.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 60 per tube
STPSC20G065WL
₹755.17 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.45V@20A
- Reverse Leakage Current (Ir)
- 200uA@650V
- Current - Rectified
- 20A
- Non-Repetitive Peak Forward Surge Current
- 135A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 60 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.985 g
Overview
STPSC20G065 is an ultra-high-performance power Schottky rectifier in a DO-247 LL long-lead package, manufactured on a silicon carbide substrate. The wide-bandgap material enables the design of a low-VF Schottky diode structure rated at 650 V. Thanks to the Schottky structure, there is no reverse recovery at turn-off and ringing is negligible. Its minimal capacitive turn-off behavior is independent of temperature. Based on the latest technology optimizations, this diode features improved forward surge current capability, making it well-suited for power factor correction circuits to enhance performance under hard-switching conditions. With the design improvements of the latest "G" series SiC diodes and the tests implemented in production, this diode is becoming a reference point for application design in terms of the combination of efficiency and application robustness.
Applications
- Solar inverters
- Air conditioner outdoor units
- UPS power supplies
- Telecom / server power equipment
- EV charging stations
Key features
- No reverse recovery charge within application current range
- Switching behavior independent of temperature
- High forward surge current capability
- Junction temperature Tj operating range from -55℃ to 175℃
- ECOPACK2 compliant components
