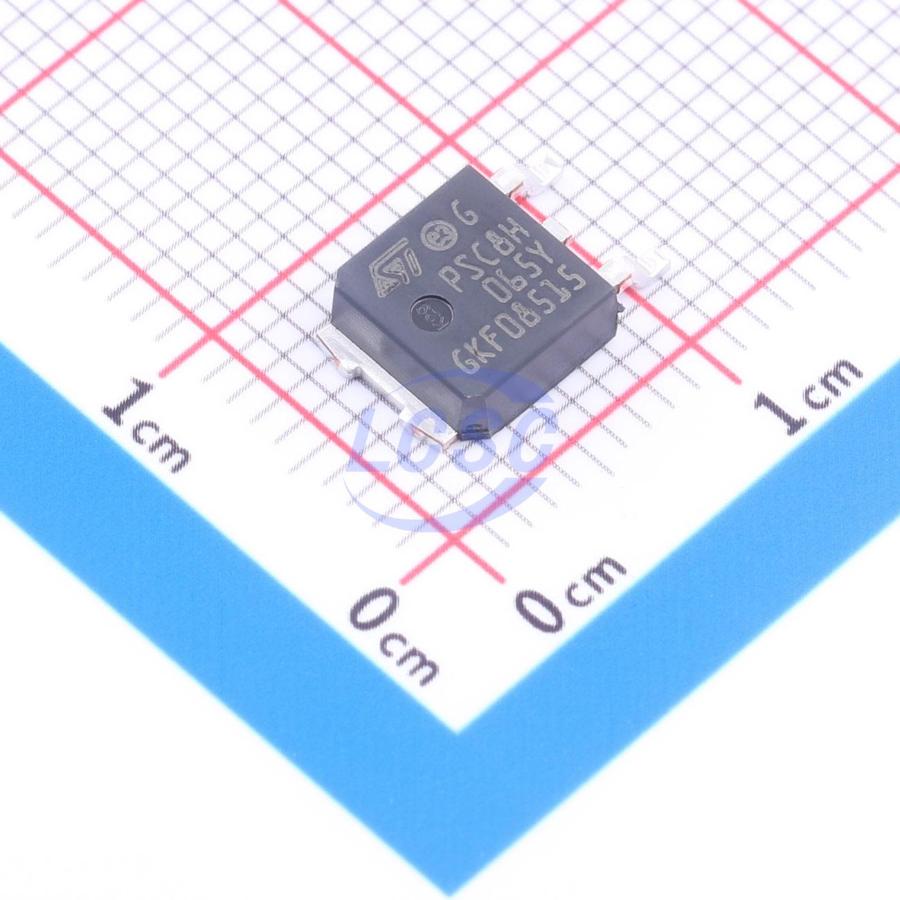

STPSC8H065BY-TR
650V 1.65V@8A 8A DPAK Single Diodes RoHS
- Manufacturer
- ST
- Manufacturer part #
- STPSC8H065BY-TR
- Store part #
- C2970692
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C2970692
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹918.43 | ₹918.43 |
| 10+ | ₹791.17 | ₹7,911.70 |
| 30+ | ₹713.55 | ₹21,406.50 |
| 100+ | ₹648.49 | ₹64,849.00 |
1 × ₹918.43
₹918.43
excl. GST
₹1,083.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STPSC8H065BY-TR
₹918.43 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.65V@8A
- Reverse Leakage Current (Ir)
- 80uA@650V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.47 g
Overview
SiC diode is a high-performance power Schottky diode fabricated on a silicon carbide substrate. The wide bandgap material enables the design of a Schottky diode structure rated at 650V. Due to the Schottky structure, there is no recovery phenomenon at turn-off and ringing is negligible. The minimal capacitive turn-off behavior is independent of temperature. The STPSC8H065-Y SiC diode is particularly suited for PFC applications, enhancing performance under hard-switching conditions.
Applications
- Onboard charger
Key features
- AEC-Q101 qualified
- No reverse recovery charge within application current range
- Switching behavior independent of temperature
- Recommended for PFC applications
- PPAP capable
- Voltage guaranteed from -40 to 175℃
- D²PAK HV package (anode to cathode) minimum creepage distance 5.38mm (with top coating)
- ECOPACK®2 compliant component
