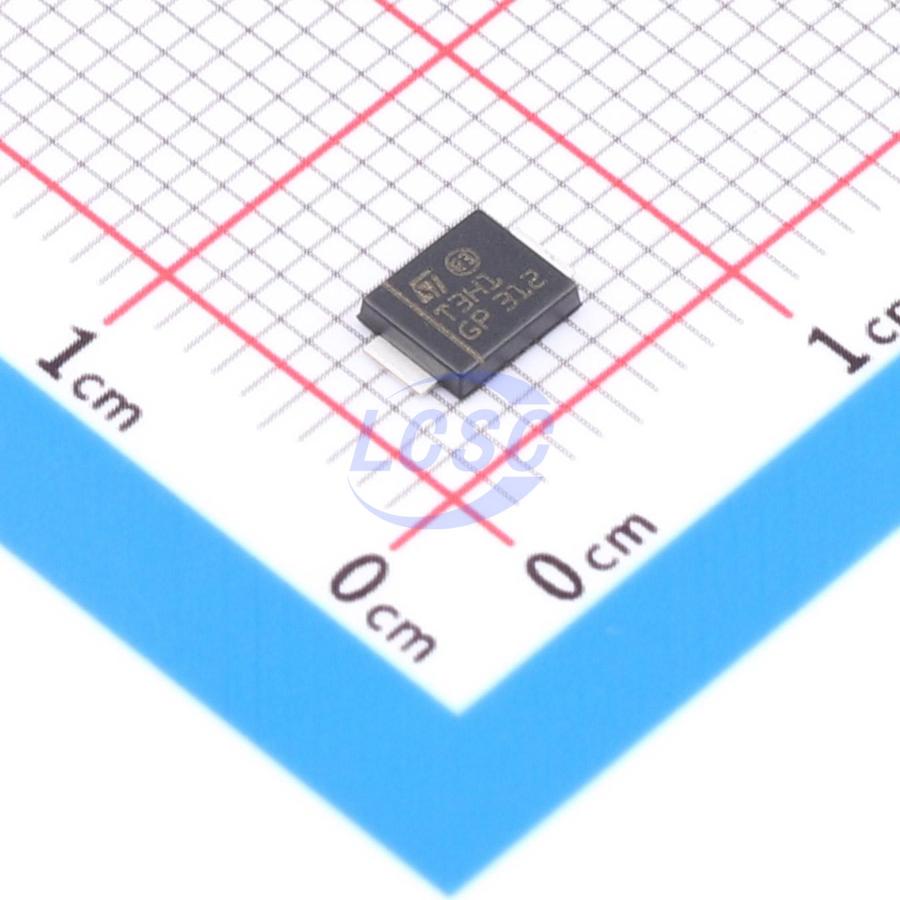

STPST3H100UF
Diode 100V 3A SMBFLAT-3L
DIODE SCHOTTKY 100V SMBFLAT-3L
- Manufacturer
- ST
- Manufacturer part #
- STPST3H100UF
- Store part #
- C20033893
- Package / case
- SMBFLAT-3L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C20033893
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹28.95 | ₹28.95 |
| 10+ | ₹28.30 | ₹283.00 |
| 30+ | ₹27.88 | ₹836.40 |
| 100+ | ₹27.23 | ₹2,723.00 |
1 × ₹28.95
₹28.95
excl. GST
₹34.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STPST3H100UF
₹28.95 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 755mV@3A
- Reverse Leakage Current (Ir)
- 5.7uA@100V
- Non-Repetitive Peak Forward Surge Current
- 55A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.103 g
Overview
This 3 A, 100 V rectifier is based on ST trench technology that achieves the best-in-class VF / IR trade-off for a given silicon surface. Integrated in flat and space-saving packages, this STPST3H100 trench rectifier is intended to be used in high frequency miniature switched mode power supplies. It is also an ideal candidate for auxiliary power supply in telecom, server, or smart metering. ST trench rectifiers are adapted to freewheeling, OR-ring or reverse polarity protection applications, and can be the perfect companion device to our transistors, drivers, or ST VIPer products.
Applications
- DC/DC converter
- LED lighting
- Flyback topology
- Auxiliary power supply
- Switch mode power supply (SMPS)
Key features
- ST trench patented process
- High junction temperature capability
- Low forward voltage drop
- Low recovery charges
- Reduces conduction, reverse and switching losses
- Avalanche tested
- Flat packages
- ECOPACK2 compliant
