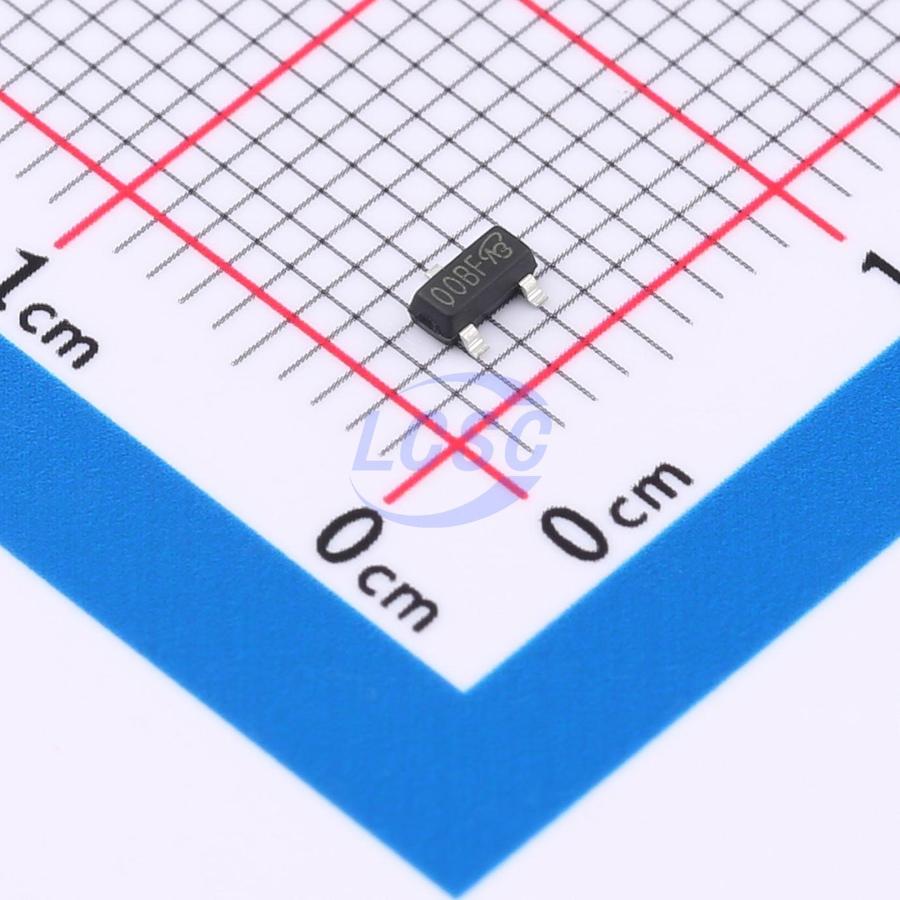

STS2300S-VB
N-Channel 20V 6A 1.25W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 20V 6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STS2300S-VB
- Store part #
- C29779630
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29779630
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.67 | ₹86.70 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.95 | ₹1,785.00 |
| 3,000+ | ₹5.27 | ₹15,810.00 |
| 6,000+ | ₹4.72 | ₹28,320.00 |
| 9,000+ | ₹4.45 | ₹40,050.00 |
10 × ₹8.67
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STS2300S-VB
₹86.70 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 865pF
- Pd - Power Dissipation
- 1.25W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.068 g
Overview
Applications
- DC/DC converter
- Load switch for portable applications
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- RoHS compliant per directive 2002/95/EC
