STDatasheet (PDF)

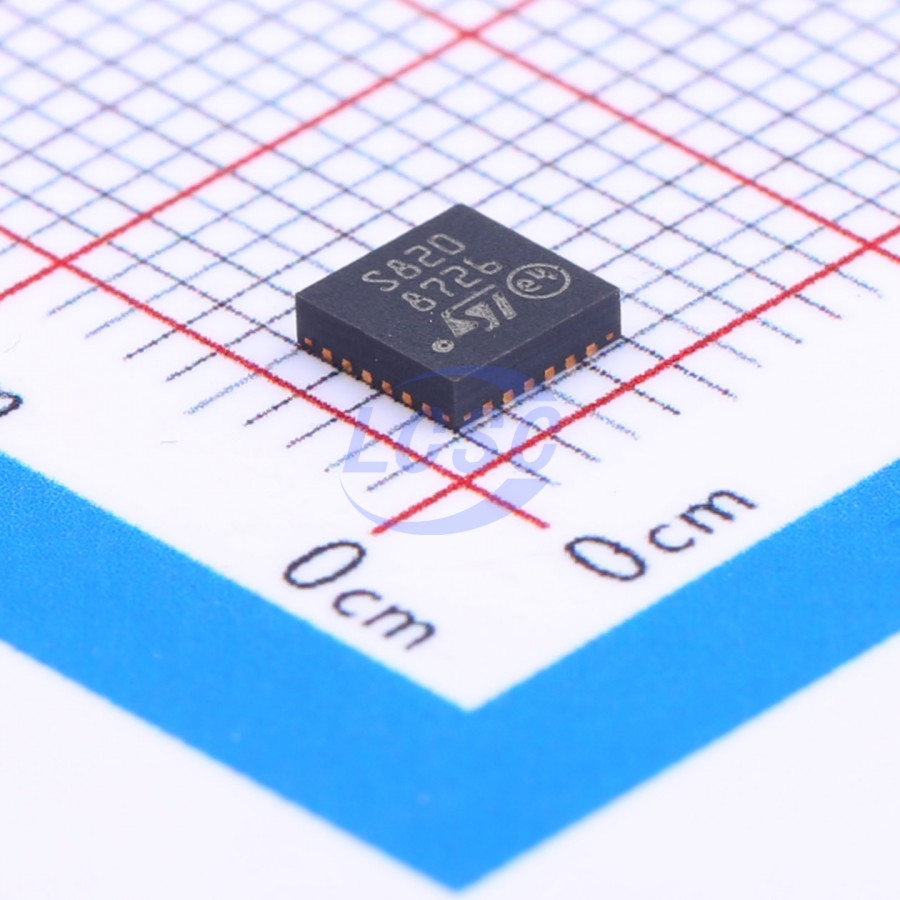

STSPIN820
QFN-24-EP(4x4) Motor Drivers, Controllers RoHS
QFN-24-EP(4x4)ROHS3 CompliantActive
Advanced 256 microsteps integrated motor driver with step-clock and direction interface
- Manufacturer
- ST
- Manufacturer part #
- STSPIN820
- Store part #
- C160702
- Package / case
- QFN-24-EP(4x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,388 in stock
#C160702
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹279.40 | ₹279.40 |
| 10+ | ₹236.57 | ₹2,365.70 |
| 30+ | ₹209.83 | ₹6,294.90 |
| 100+ | ₹182.43 | ₹18,243.00 |
| 500+ | ₹170.03 | ₹85,015.00 |
| 1,000+ | ₹164.59 | ₹1,64,590.00 |
1 × ₹279.40
₹279.40
excl. GST
₹329.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
STSPIN820
₹279.40 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -40℃~+150℃
- Output Current
- 1.5A
- Step Resolution
- 256
- Control Voltage
- 7V~45V
- RDS(on)
- 1Ω
- Motor Drive Voltage(Vm)
- 7V~45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.079 g
Overview
The STSPIN820 is a stepper motor driver which integrates, in a small QFN 4×4 mm package, both control logic and a low RDSon power stage. The device can be forced into a low consumption state. The device offers a complete set of protection features including overcurrent, overtemperature and short-circuit protection.
Applications
- 3D printers
- Medical equipment
- Industrial 2D printers
- Textile and sewing machines
- CCTV, security and dome cameras
- ATM and cash handling machines
- Office and home automation
- POS Robotics
Key features
- Advanced 256 microsteps integrated motor driver with step-clock and direction interface
- Operating voltage from 7 to 45 V
- Maximum output current 1.5 Arms
- RDSon HS + LS = 1 Ω typ.
- Microstepping up to 1/256th of step
- Current control with programmable OFF time
- Current sensing based on external shunt resistor
- Full protection set
- Non-dissipative overcurrent protection
- Short-circuit protection
- Undervoltage lockout
- Thermal shutdown
- Standby low consumption
