STDatasheet (PDF)

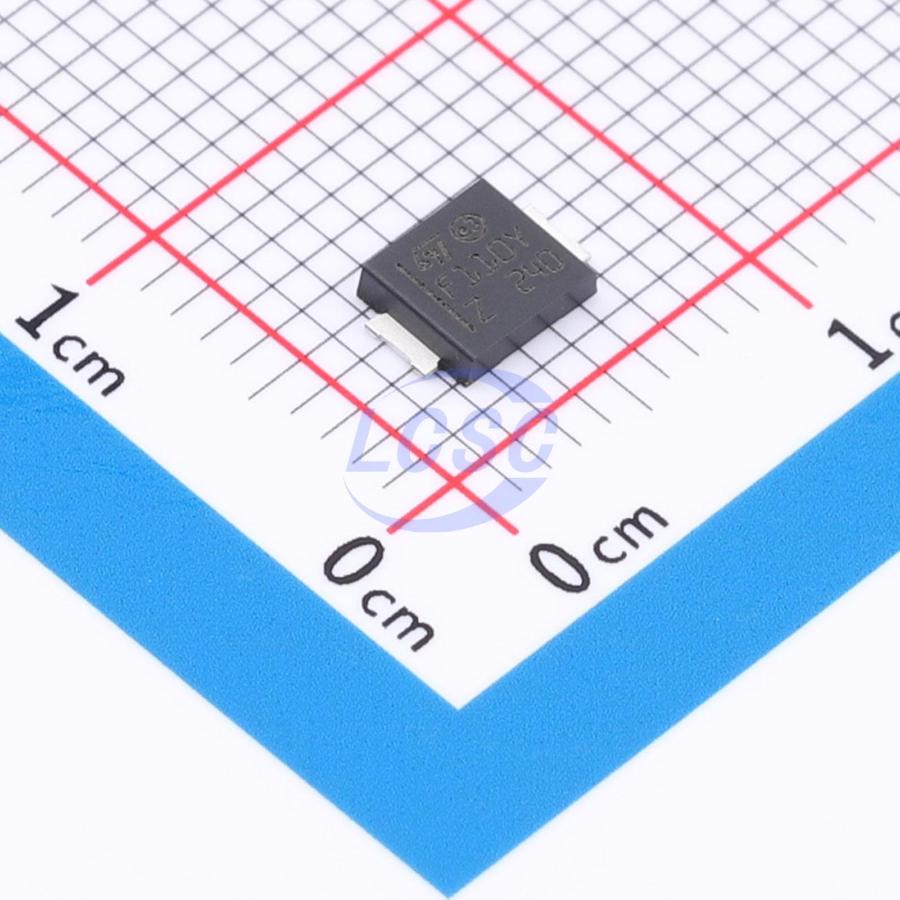

STTH110UFY
75ns 1 Independent 1kV 1.7V@1A 1A DO-221AA(SMB) Single Diodes RoHS
DO-221AA(SMB)ROHS3 CompliantActive
Diode 1kV 1A DO-221AA(SMB)
- Manufacturer
- ST
- Manufacturer part #
- STTH110UFY
- Store part #
- C2970319
- Package / case
- DO-221AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C2970319
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.36 | ₹97.36 |
| 10+ | ₹78.67 | ₹786.70 |
| 30+ | ₹69.33 | ₹2,079.90 |
| 100+ | ₹59.98 | ₹5,998.00 |
| 500+ | ₹54.34 | ₹27,170.00 |
| 1,000+ | ₹51.50 | ₹51,500.00 |
1 × ₹97.36
₹97.36
excl. GST
₹114.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STTH110UFY
₹97.36 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.7V@1A
- Reverse Leakage Current (Ir)
- 5uA@1kV
- Non-Repetitive Peak Forward Surge Current
- 20A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.111 g
Overview
The STTH110-Y utilizes a new 1000V planar technology, making it particularly suitable for switch-mode base drive and transistor circuits. The device can also be used as a freewheeling diode in power supply and other power switching applications within automotive K-function.
Applications
- Switch-mode base drive and transistor circuits
- Freewheeling diode in power supply and other power switching applications in automotive K-function
Key features
- AEC-Q101 qualified
- Ultra-low conduction losses
- Negligible switching losses
- Short forward and reverse recovery times
- High junction temperature
- Components available in ECOPACK2 or ECOPACK3 compliance upon request
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | US2M#C2892666YONGYUTAI · SMB(DO-214AA) | YONGYUTAI | SMB(DO-214AA) | 2,980 | ₹3.68 · 2,980 in stock | View |
 | HS1MB#C961838YANGJIE · SMB(DO-214AA) | YANGJIE | SMB(DO-214AA) | 2,600 | ₹5.66 · 2,600 in stock | View |
 | US2M#C22448070XUMAO · SMB | XUMAO | SMB | 2,760 | ₹3.29 · 2,760 in stock | View |
 | HS2M#C2944255RUILON · SMB | RUILON | SMB | 880 | ₹6.05 · 880 in stock | View |
 | US2M#C49238203Guangdong Hottech · SMB | Guangdong Hottech | SMB | 2,360 | ₹4.19 · 2,360 in stock | View |
