STDatasheet (PDF)

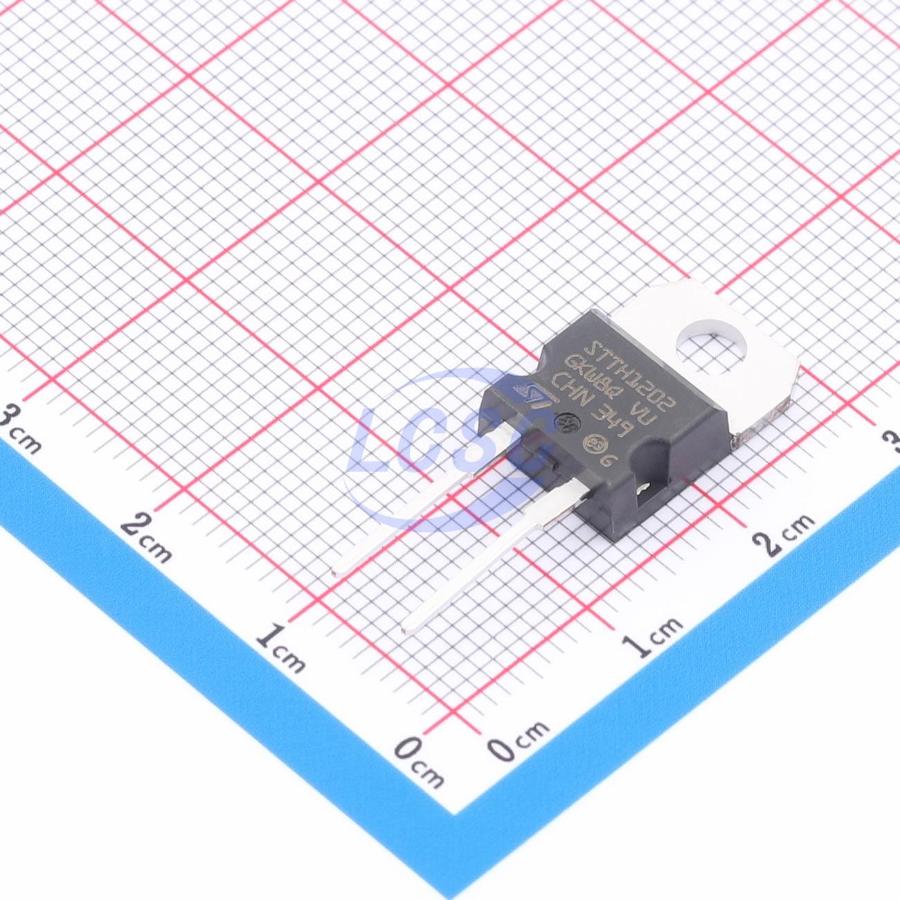

STTH1202D
35ns 1 Independent 200V 1.1V@12A 12A TO-220AC-2 Single Diodes RoHS
TO-220AC-2ROHS3 CompliantActive
Diode 200V 12A TO-220AC-2
- Manufacturer
- ST
- Manufacturer part #
- STTH1202D
- Store part #
- C2965464
- Package / case
- TO-220AC-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C2965464
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.01 | ₹118.01 |
| 10+ | ₹96.18 | ₹961.80 |
| 30+ | ₹85.27 | ₹2,558.10 |
| 100+ | ₹74.35 | ₹7,435.00 |
| 500+ | ₹67.98 | ₹33,990.00 |
| 1,000+ | ₹64.67 | ₹64,670.00 |
1 × ₹118.01
₹118.01
excl. GST
₹139.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per reel
STTH1202D
₹118.01 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.1V@12A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 12A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 50 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.26 g
Overview
The STTH1202 uses ST's new 200V planar Pt doping technology, and is specially suited for switching mode base drive and transistor circuits. Packaged in TO-220AC, TO-220FPAC, and TO-220AC Ins, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection.
Applications
- Switch-mode base drive and transistor circuits
- Low-voltage, high-frequency inverters
- Freewheeling and polarity protection
Key features
- Very low conduction losses
- Negligible switching losses
- Low forward and reverse recovery time
- High junction temperature
- Insulated packages – TO-220FPAC Electrical insulation 1500 VRMS, TO-220AC Ins Electrical insulation 2500 VRMS
