STDatasheet (PDF)

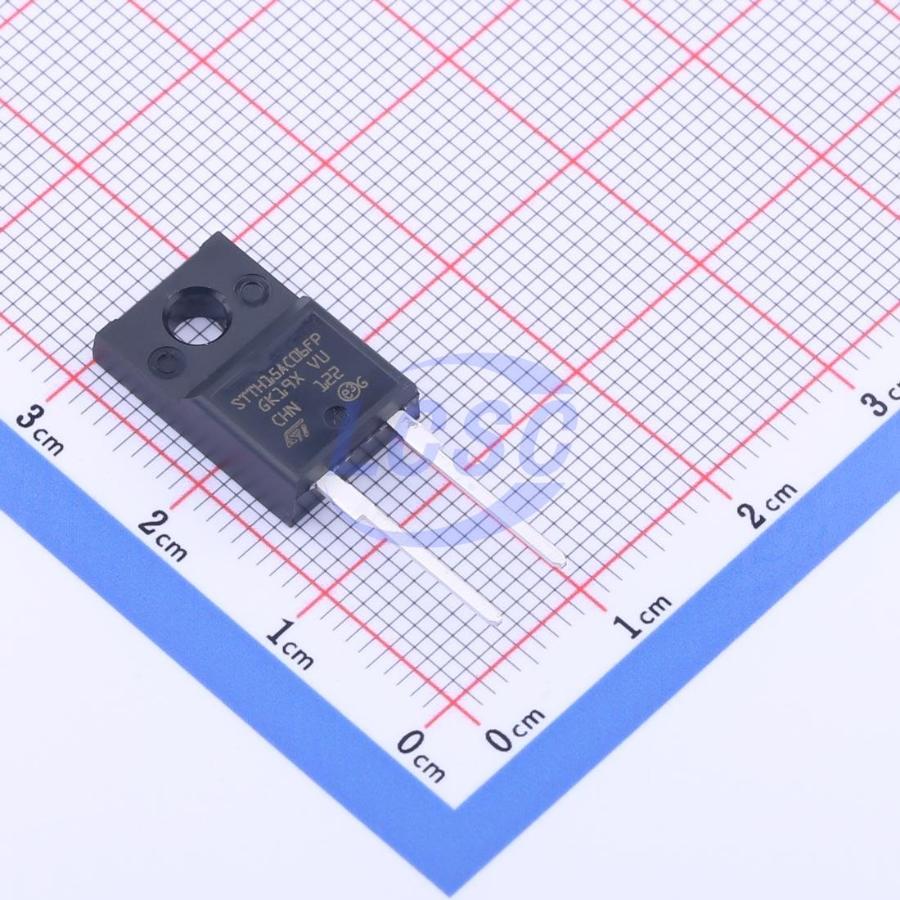

STTH15AC06FP
Standalone 600V 1.9V@15A 15A TO-220FPAC-2 Single Diodes RoHS
TO-220FPAC-2ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STTH15AC06FP
- Store part #
- C2926460
- Package / case
- TO-220FPAC-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C2926460
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.14 | ₹159.14 |
| 10+ | ₹133.21 | ₹1,332.10 |
| 50+ | ₹120.34 | ₹6,017.00 |
| 100+ | ₹107.71 | ₹10,771.00 |
| 500+ | ₹100.07 | ₹50,035.00 |
| 1,000+ | ₹95.93 | ₹95,930.00 |
1 × ₹159.14
₹159.14
excl. GST
₹187.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STTH15AC06FP
₹159.14 for 1 + GST
Specifications
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.9V@15A
- Reverse Leakage Current (Ir)
- 2uA@600V
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.64 g
Overview
The STTH15AC06 utilizes ST Turbo 2 600V technology and is designed as a boost diode for continuous mode interleaved PFC in air conditioning equipment. The device can also be used as a freewheeling diode in power supplies and other power switching applications.
Applications
- Boost diode for continuous-mode interleaved PFC in air conditioning equipment
- Freewheeling diode for power supplies and other power switching applications
Key features
- Ultra-fast switching speed
- Low reverse current
- Reduced switching and conduction losses
- Low thermal resistance
- Isolated TO-220FPAC package, isolation voltage 2000 VRMS sinusoidal
- Epoxy resin compliant with UL94 V0
- TO-220FPAC package recommended torque 0.55 N·m, maximum torque 0.7 N·m
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYC15-1200PQ#C331537WeEn · ITO-220AC | WeEn | ITO-220AC | 105 | ₹262.38 · 105 in stock | View |
 | BYC30-600P,127#C331533WeEn · ITO-220AC | WeEn | ITO-220AC | On request | ₹307.12 · 0 in stock | View |
 | SDURF1560#C260378SMC · ITO-220AC | SMC | ITO-220AC | On request | ₹78.68 · 0 in stock | View |
 | BYC30-1200PQ#C331538WeEn · ITO-220AC | WeEn | ITO-220AC | On request | ₹498.90 · 0 in stock | View |
