STDatasheet (PDF)

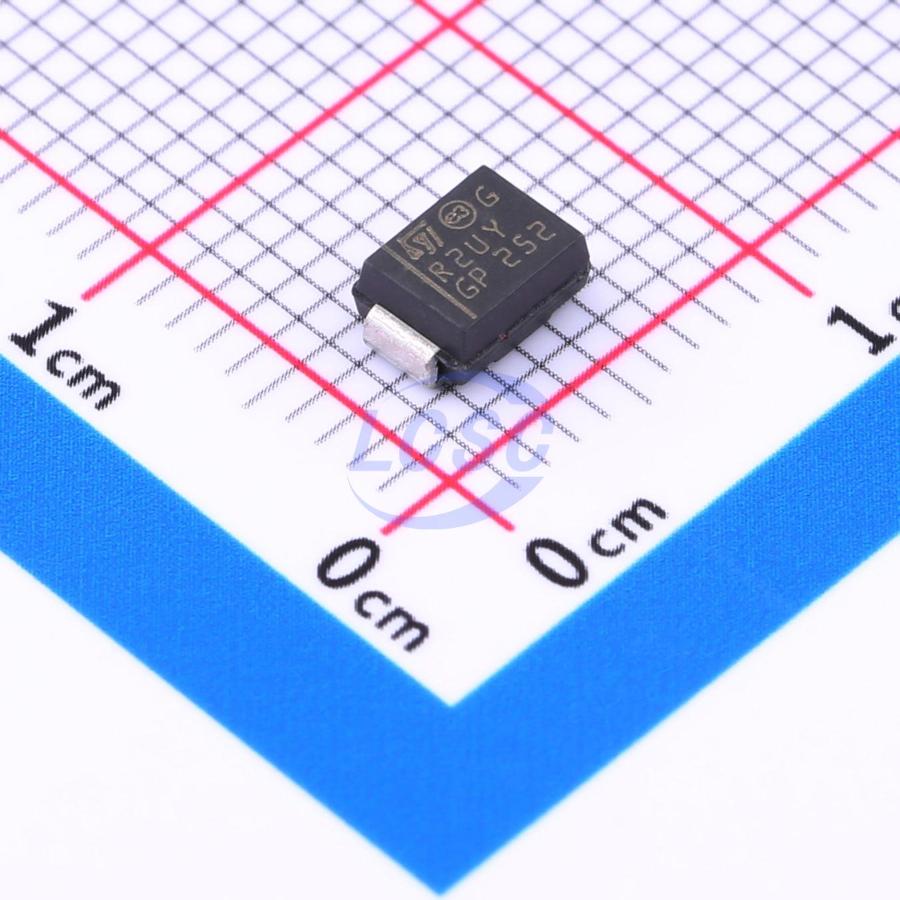

STTH2R02UY
30ns 1 Independent 200V 1V@2A 2A DO-214AA Single Diodes RoHS
DO-214AAROHS3 CompliantActive
Diode 200V 2A DO-214AA
- Manufacturer
- ST
- Manufacturer part #
- STTH2R02UY
- Store part #
- C2969972
- Package / case
- DO-214AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
185 in stock
#C2969972
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.38 | ₹131.90 |
| 50+ | ₹20.60 | ₹1,030.00 |
| 150+ | ₹18.14 | ₹2,721.00 |
| 500+ | ₹15.04 | ₹7,520.00 |
| 2,500+ | ₹13.68 | ₹34,200.00 |
| 5,000+ | ₹12.85 | ₹64,250.00 |
5 × ₹26.38
₹131.90
excl. GST
₹155.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STTH2R02UY
₹131.90 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 30ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - Forward(Vf@If)
- 1V@2A
- Reverse Leakage Current (Ir)
- 3uA@200V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
This 2 A, 200 V uses ST's 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor circuits.
Applications
- High frequency inverters
- Freewheeling diode
- Polarity protection
- Reverse battery protection
Key features
- AEC - Q101 qualified
- Very low conduction losses
- Negligible switching losses
- Low forward and reverse recovery times
- High junction temperature
- PPAP capable
- ECOPACK2 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH2R02U#C2802049ST · SMB | ST | SMB | On request | ₹13.43 · 0 in stock | View |
 | ES2D-E3/52T#C183019VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 63,720 | ₹21.37 · 63,720 in stock | View |
 | ES2DHE3_A/H#C968579VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 50 | ₹28.63 · 50 in stock | View |
 | ES3DB#C7450506LangJie · DO-214AA | LangJie | DO-214AA | 560 | ₹5.24 · 560 in stock | View |
 | ES3D-SMB#C2848678GOODWORK · SMB(DO-214AA) | GOODWORK | SMB(DO-214AA) | 15,720 | ₹4.17 · 15,720 in stock | View |
