STDatasheet (PDF)

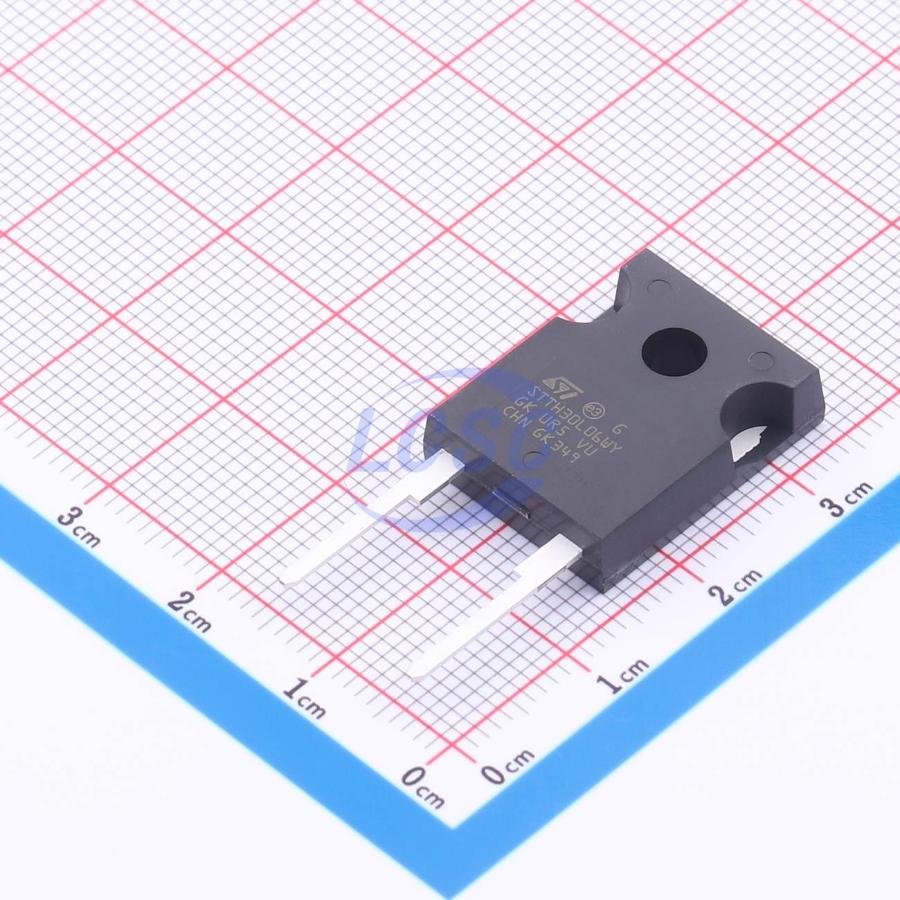

STTH30L06WY
600V 1.55V@30A 30A DO-247-2 Single Diodes RoHS
DO-247-2ROHS CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STTH30L06WY
- Store part #
- C672223
- Package / case
- DO-247-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C672223
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹743.00 | ₹743.00 |
| 10+ | ₹641.10 | ₹6,411.00 |
| 30+ | ₹578.97 | ₹17,369.10 |
| 90+ | ₹526.83 | ₹47,414.70 |
| 510+ | ₹520.31 | ₹2,65,358.10 |
1 × ₹743.00
₹743.00
excl. GST
₹876.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STTH30L06WY
₹743.00 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.55V@30A
- Reverse Leakage Current (Ir)
- 25uA@600V
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.705 g
Overview
STTH30L06-Y is an ultrafast recovery power rectifier designed to improve energy efficiency, available in DO-247 and D²PAK packages. This product is specifically designed for PFC boost applications in automotive use.
Applications
- On-Board Charger (OBC) in EV/HEV
- Charging stations
- Output rectification
- PFC topologies
Key features
- AEC-Q101 qualified
- Ultra-fast recovery
- Low forward voltage drop
- High surge capability
- Low leakage current
- High junction temperature
- VRRM guaranteed from -40 to +175℃
- ECOPACK2 compliant (DO-247 package)
