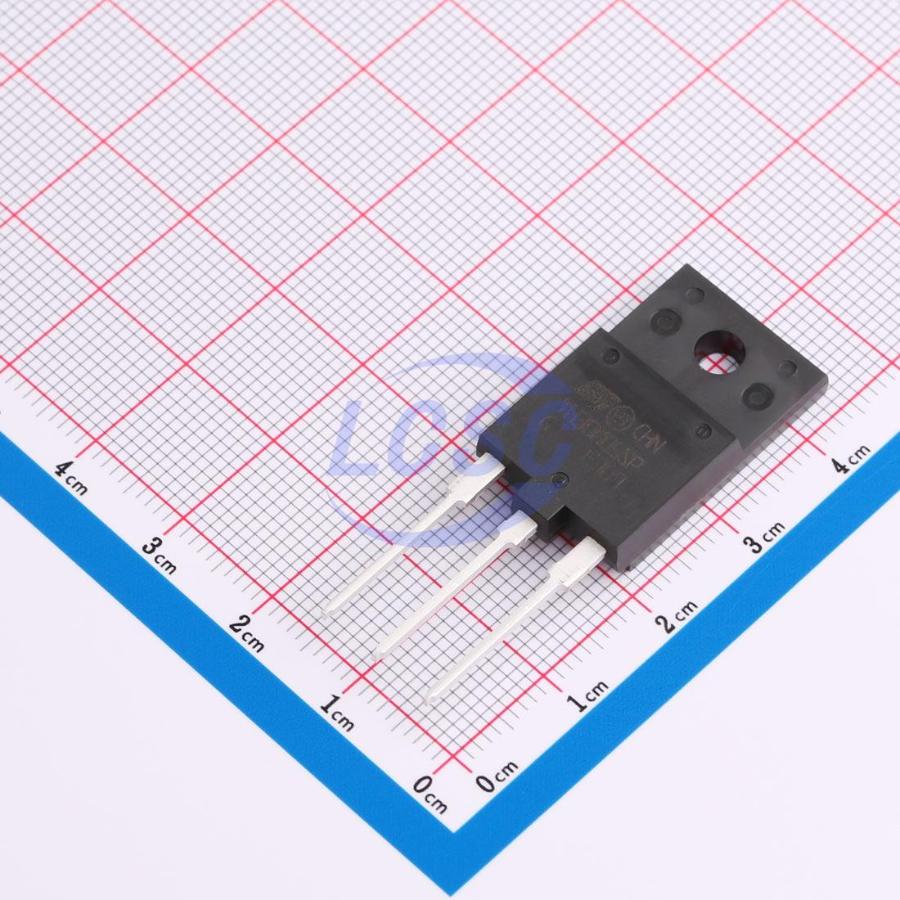

STTH30M06SPF

35ns 1 Independent 600V 3.8V@30A 30A TO-3PF Single Diodes RoHS

TO-3PFROHS3 CompliantActive

Diode 600V 30A TO-3PF

Manufacturer: ST
Manufacturer part #: STTH30M06SPF
Store part #: C5456177
Package / case: TO-3PF
Category: Single Diodes
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

142 in stock

#C5456177

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹296.42	₹296.42
10+	₹269.98	₹2,699.80
30+	₹253.51	₹7,605.30
90+	₹236.62	₹21,295.80
510+	₹229.02	₹1,16,800.20
990+	₹225.56	₹2,23,304.40

Quantity (min 1)

1 × ₹296.42

₹296.42

excl. GST

₹349.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 30 per tube

STTH30M06SPF

₹296.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Reverse Recovery Time (trr): 35ns
Diode Configuration: 1 Independent
Voltage - DC Reverse (Vr) (Max): 600V
Voltage - Forward(Vf@If): 3.8V@30A
Reverse Leakage Current (Ir): 60uA@600V
Non-Repetitive Peak Forward Surge Current: 170A
Current - Rectified: 30A

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 30 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 8.12 g

Overview

The STTH30M06S is an ultrafast recovery power rectifier especially suited for boost or LLC clamping circuits working at high switching frequencies in heavy duty applications such as air conditioning equipment or telecom power supplies. Designed with the latest ST’s ultrafast technology, this 600 V 30 A diode in TO - 3PF has a robust behavior against electrostatic discharge and high overcurrent capability.
