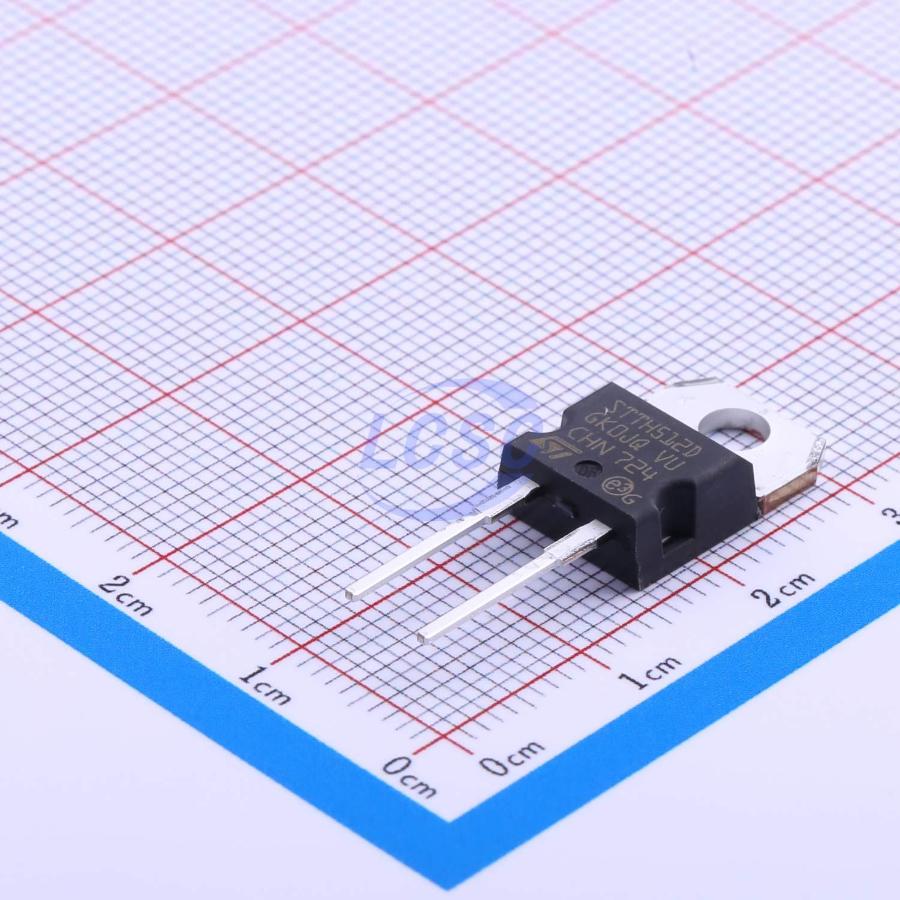

STTH512D
48ns 1 Independent 1.2kV 2.2V@5A 5A ITO-220AC Single Diodes RoHS
Diode 1.2kV 5A ITO-220AC
- Manufacturer
- ST
- Manufacturer part #
- STTH512D
- Store part #
- C115711
- Package / case
- ITO-220AC
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C115711
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.82 | ₹156.82 |
| 10+ | ₹128.37 | ₹1,283.70 |
| 50+ | ₹112.73 | ₹5,636.50 |
| 100+ | ₹95.14 | ₹9,514.00 |
| 500+ | ₹87.32 | ₹43,660.00 |
| 1,200+ | ₹83.84 | ₹1,00,608.00 |
1 × ₹156.82
₹156.82
excl. GST
₹185.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STTH512D
₹156.82 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 48ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Voltage - Forward(Vf@If)
- 2.2V@5A
- Reverse Leakage Current (Ir)
- 5uA@1.2kV
- Non-Repetitive Peak Forward Surge Current
- 55A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.027 g
Overview
The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability. Such demanding applications include industrial power supplies, motor control, and similar mission-critical systems that require rectification and freewheeling. These diodes also fit into auxiliary functions such as snubber, bootstrap, and demagnetization applications. The improved performance in low leakage current, and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
Applications
- industrial power supplies
- motor control
- snubber
- bootstrap
- demagnetization applications
Key features
- Ultrafast, soft recovery
- Very low conduction and switching losses
- High frequency and/or high pulsed current operation
- High reverse voltage capability
- High junction temperature
- ECOPACK B₂ compliant component for DPAK on demand
- Insulated package: TO-220FPAC – Insulated voltage: 2000 VRMS sine
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH812D#C283390ST · ITO-220AC | ST | ITO-220AC | 40 | ₹171.86 · 40 in stock | View |
 | FR15140DAF#C42394978YFW · TO-220FAC | YFW | TO-220FAC | 100 | ₹38.82 · 100 in stock | View |
 | FR15160DAF#C50327216YFW · TO-220FAC | YFW | TO-220FAC | 100 | ₹39.47 · 100 in stock | View |
 | SPT15S120SF2#C52741759SPTECH · TO-220F-2 | SPTECH | TO-220F-2 | 2 | ₹80.12 · 2 in stock | View |
 | DHG10I1200PM#C497165Littelfuse/IXYS · TO-220FP-2 | Littelfuse/IXYS | TO-220FP-2 | 8 | ₹233.38 · 8 in stock | View |
