STDatasheet (PDF)

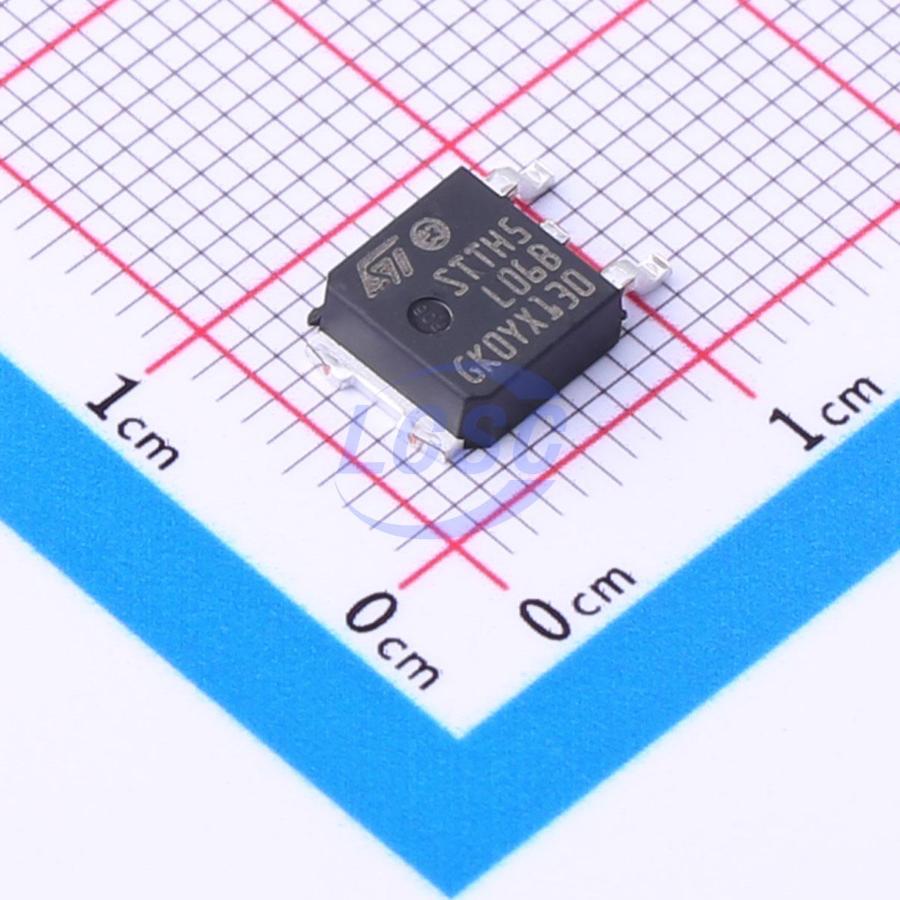

STTH5L06B-TR
Diode Independent 600V 5A Surface Mount DPAK
DPAKROHS3 CompliantActive
DIODE STANDARD 600V 5A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STTH5L06B-TR
- Store part #
- C2923762
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C2923762
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.30 | ₹55.30 |
| 10+ | ₹43.33 | ₹433.30 |
| 30+ | ₹38.10 | ₹1,143.00 |
| 100+ | ₹31.79 | ₹3,179.00 |
| 500+ | ₹28.96 | ₹14,480.00 |
| 1,000+ | ₹27.21 | ₹27,210.00 |
1 × ₹55.30
₹55.30
excl. GST
₹65.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STTH5L06B-TR
₹55.30 for 1 + GST
Specifications
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.3V@5A
- Reverse Leakage Current (Ir)
- 5uA@600V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.524 g
Overview
The device is developed using ST's Turbo 2 600 V technology. It is well-suited as a boost diode, especially for use in continuous mode power factor corrections and hard switching conditions. This device is also intended for use as a free wheeling diode in power supplies and other power switching applications.
Applications
- Boost diode for continuous mode PFC and hard-switching conditions
- Freewheeling diode for power supply and other power switching applications
Key features
- Ultrafast switching
- Low reverse recovery current
- Reduces switching losses
- Low thermal resistance
- Insulated package: TO-220FPAC Insulation voltage: 2000 VRMS sine
- ECOPACK compliant component for DPAK on demand
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | G510DS#C19193792JUXING · TO-252 | JUXING | TO-252 | 2,480 | ₹11.68 · 2,480 in stock | View |
 | G610DS#C3011048JUXING · TO-252 | JUXING | TO-252 | 9,920 | ₹12.66 · 9,920 in stock | View |
 | G610DS#C668175Jingdao Microelectronics · TO-252-2 | Jingdao Microelectronics | TO-252-2 | 2 | ₹10.80 · 2 in stock | View |
 | G810DS#C3011049JUXING · TO-252 | JUXING | TO-252 | 80 | ₹12.29 · 80 in stock | View |
 | STTH506B-TR#C283501ST · DPAK | ST | DPAK | 46,660 | ₹47.91 · 46,660 in stock | View |
