STDatasheet (PDF)

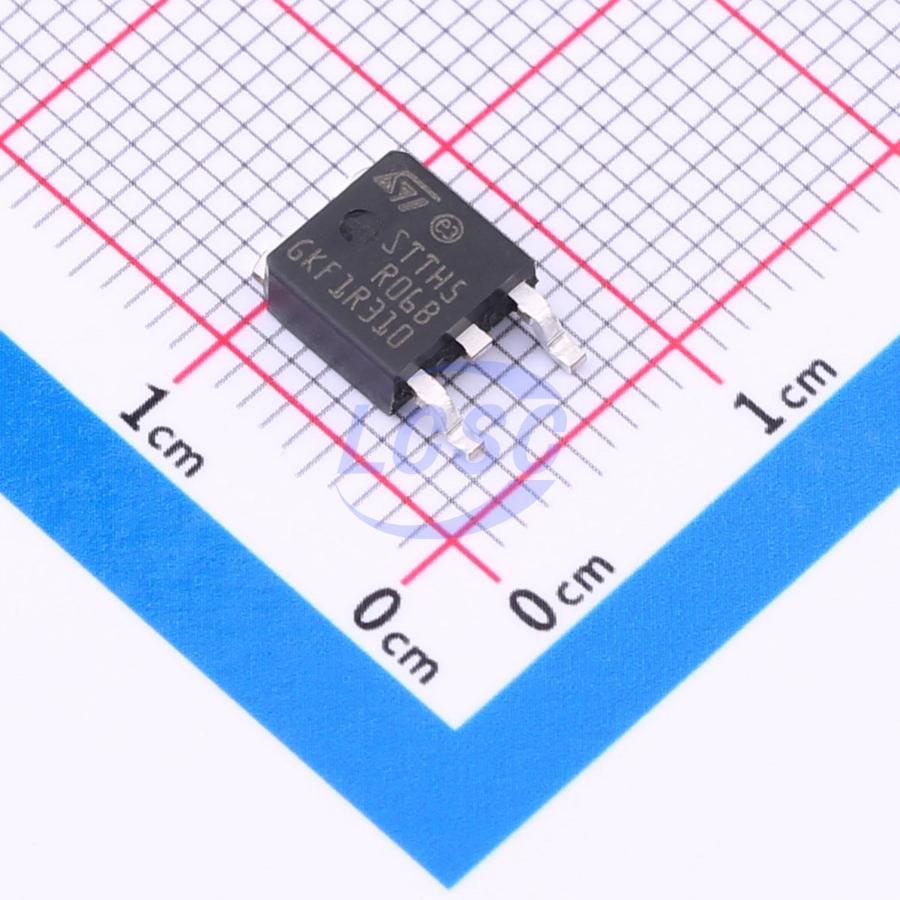

STTH5R06B
40ns 1 Independent 600V 2.9V@5A 5A DPAK Single Diodes RoHS
DPAKROHS3 CompliantActive
Diode 600V 5A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STTH5R06B
- Store part #
- C2971457
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C2971457
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.50 | ₹115.50 |
| 10+ | ₹92.11 | ₹921.10 |
| 30+ | ₹80.29 | ₹2,408.70 |
| 100+ | ₹68.49 | ₹6,849.00 |
| 500+ | ₹61.61 | ₹30,805.00 |
| 1,000+ | ₹57.97 | ₹57,970.00 |
1 × ₹115.50
₹115.50
excl. GST
₹136.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
STTH5R06B
₹115.50 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 40ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 2.9V@5A
- Reverse Leakage Current (Ir)
- 20uA@600V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.741 g
Overview
The device is developed using ST's Turbo 2 600 V technology. It is well-suited as a boost diode, especially for use in continuous mode power factor corrections and hard switching conditions. This device is also intended for use as a free wheeling diode in power supplies and other power switching applications.
Applications
- Boost diode in continuous mode power factor correction
- Boost diode under hard-switching conditions
- Freewheeling diode in power supplies
- Freewheeling diode in other power switching applications
Key features
- Ultrafast switching
- Low reverse recovery current
- Reduces switching losses
- Low thermal resistance
- Insulated package: TO-220FPAC Insulation voltage: 2000 VRMS sine
- ECOPACK compliant component for DPAK on demand
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH5R06B-TR#C377945ST · DPAK | ST | DPAK | 1,110 | ₹73.60 · 1,110 in stock | View |
 | MUR560D#C961867YANGJIE · TO-252 | YANGJIE | TO-252 | 3,050 | ₹31.37 · 3,050 in stock | View |
 | SSURHD8560W1T4G#C889886onsemi · DPAK | onsemi | DPAK | 5 | ₹165.51 · 5 in stock | View |
 | RF505BM6SFHTL#C17576105ROHM · TO-252 | ROHM | TO-252 | 33 | ₹230.19 · 33 in stock | View |
 | STTH506B-TR(UMW)#C53109704UMW · TO-252 | UMW | TO-252 | 2,495 | ₹29.79 · 2,495 in stock | View |
