STDatasheet (PDF)

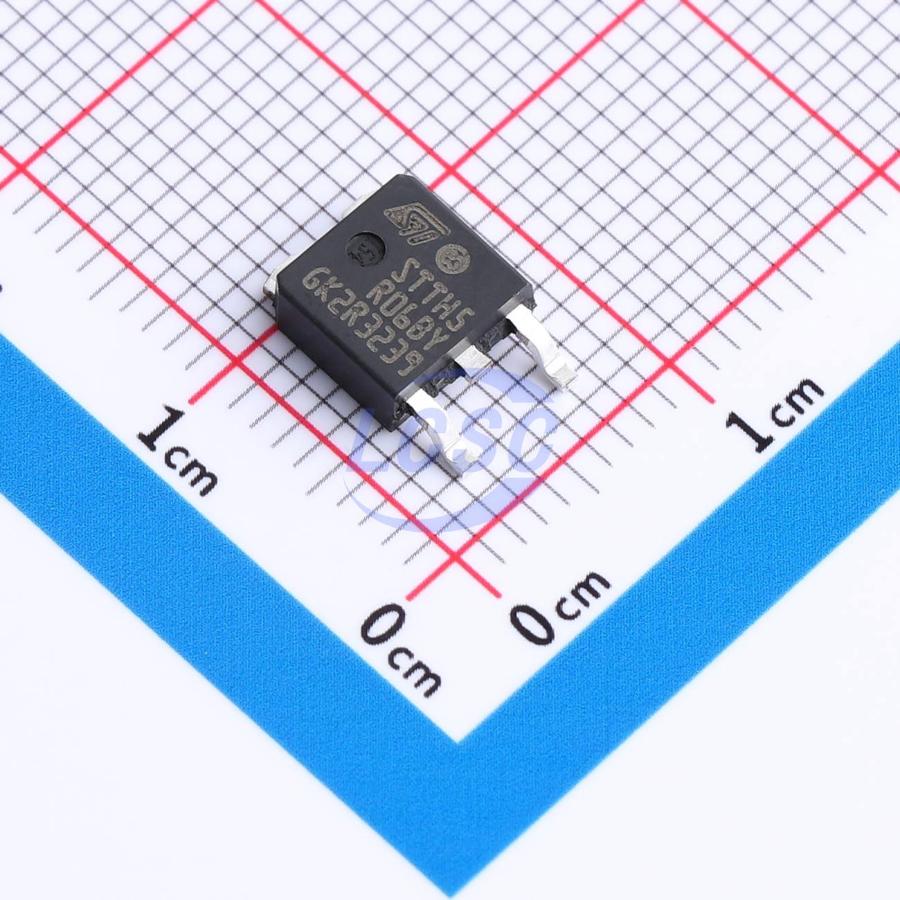

STTH5R06BY-TR
35ns 1 Independent 600V 3.2V@5A 5A DPAK Single Diodes RoHS
DPAKROHS3 CompliantActive
Diode 600V 5A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STTH5R06BY-TR
- Store part #
- C2970618
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C2970618
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹288.45 | ₹288.45 |
| 10+ | ₹255.79 | ₹2,557.90 |
| 30+ | ₹235.36 | ₹7,060.80 |
| 100+ | ₹214.51 | ₹21,451.00 |
| 500+ | ₹205.05 | ₹1,02,525.00 |
| 1,000+ | ₹200.98 | ₹2,00,980.00 |
1 × ₹288.45
₹288.45
excl. GST
₹340.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STTH5R06BY-TR
₹288.45 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 3.2V@5A
- Reverse Leakage Current (Ir)
- 30uA@600V
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.438 g
Overview
This 5A, 600V ultrafast diode is particularly suited for use as a boost diode in continuous mode power factor correction and under hard-switching conditions. The STTH5R06-Y can also be used as a freewheeling diode in power supplies and other power switching applications. Available in D²PAK and DPAK packages. The epoxy of the D²PAK package complies with UL94 V0, with conduction (C) cooling.
Applications
- Switching diode
- Freewheeling diode
- Automotive DC/DC converter
- Boost diode in continuous mode power factor correction
- Freewheeling diode in power supplies and other power switching applications
Key features
- AEC-Q101 qualified
- Ultra-fast switching
- Low reverse recovery current
- Reduced switching losses
- Low thermal resistance
- ECOPACK compatible
Alternatives
