STDatasheet (PDF)

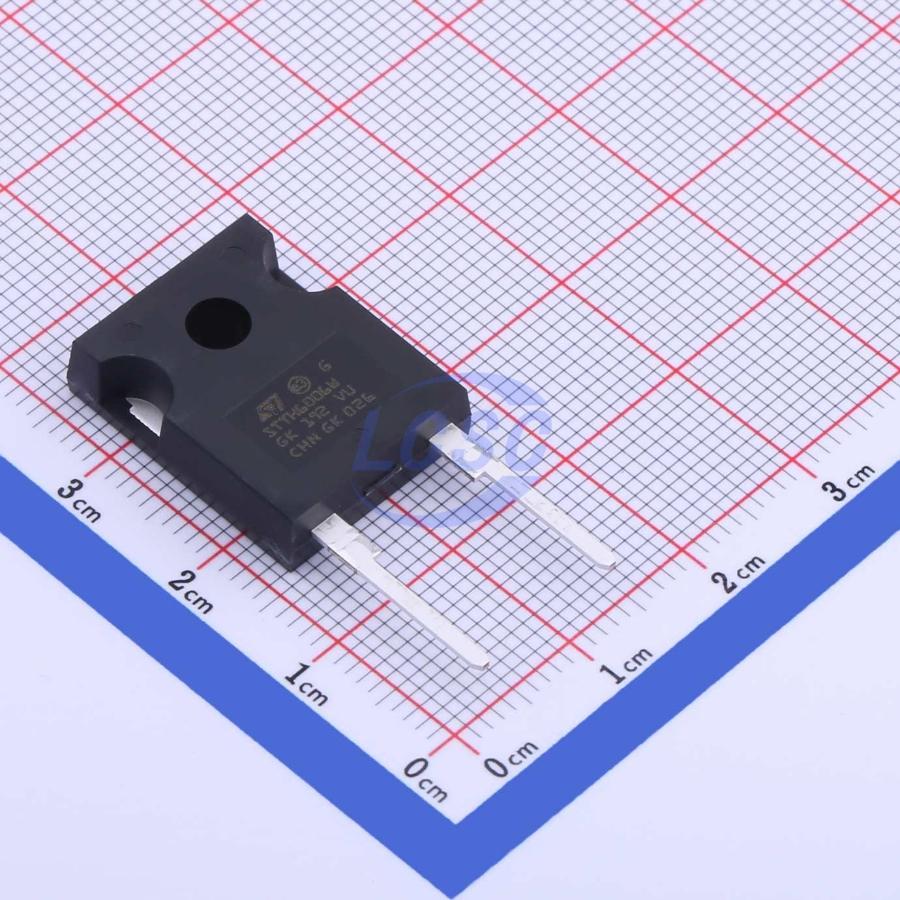

STTH6006W
Diode Independent 600V 60A Through Hole DO-247
DO-247ROHS3 CompliantActive
DIODE STANDARD 600V 60A DO-247
- Manufacturer
- ST
- Manufacturer part #
- STTH6006W
- Store part #
- C672132
- Package / case
- DO-247
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
149 in stock
#C672132
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹270.26 | ₹270.26 |
| 10+ | ₹227.58 | ₹2,275.80 |
| 30+ | ₹200.79 | ₹6,023.70 |
| 90+ | ₹173.58 | ₹15,622.20 |
| 510+ | ₹161.15 | ₹82,186.50 |
| 1,080+ | ₹155.93 | ₹1,68,404.40 |
1 × ₹270.26
₹270.26
excl. GST
₹318.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STTH6006W
₹270.26 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 1.85V@60A
- Reverse Leakage Current (Ir)
- 50uA@600V
- Non-Repetitive Peak Forward Surge Current
- 400A
- Current - Rectified
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.533 g
Overview
STTH6006W features ST Turbo 2 600V technology. The V_F/Trr trade-off is specifically optimized to enhance performance in welding applications. Conduction losses can be evaluated using the following formula: P = 1.07×I_F(AV) + 0.006I_F²(RMS).
Applications
- Switching power supplies
- Industrial applications
- Welding applications
Key features
- Ultra-fast switching
- Low reverse current
- Low thermal resistance
- Reduced conduction and switching losses
- Epoxy meets UL94 V0
- Cooling method: conduction (C)
- Recommended torque: 0.80 Nm
- Maximum torque: 1.0 Nm
