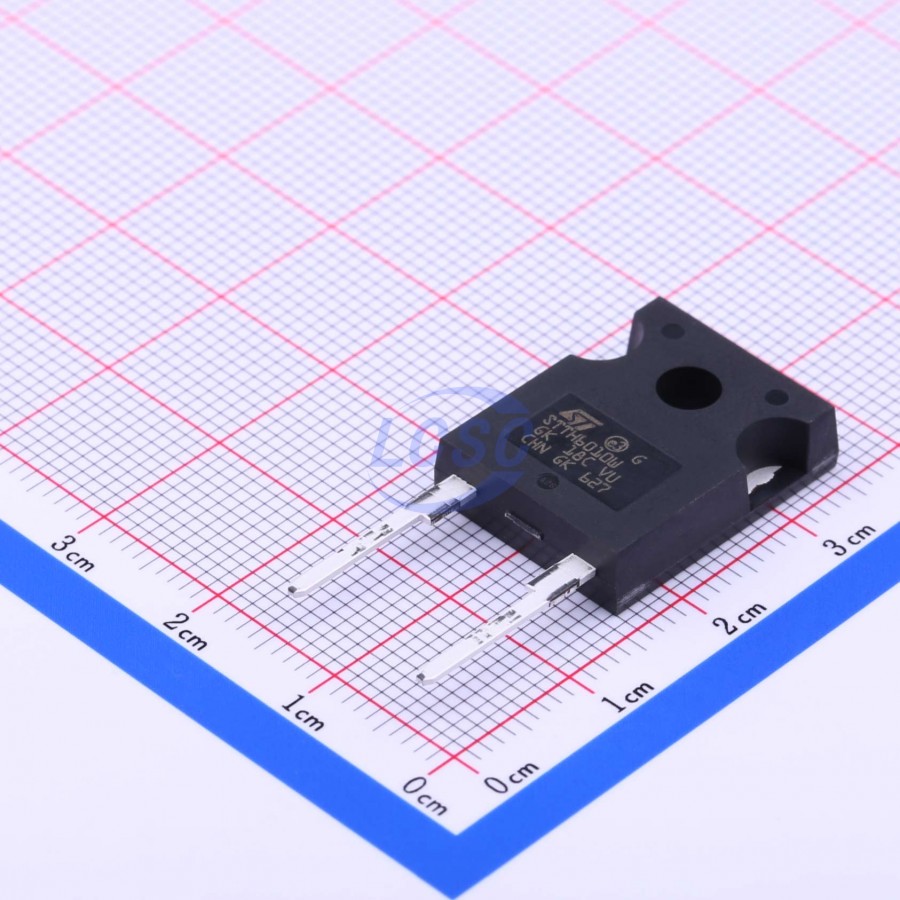

STTH6010W
61ns 1 Independent 1kV 2V@60A 60A DO-247 Single Diodes RoHS
Diode 1kV 60A DO-247
- Manufacturer
- ST
- Manufacturer part #
- STTH6010W
- Store part #
- C262978
- Package / case
- DO-247
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C262978
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹403.98 | ₹403.98 |
| 10+ | ₹393.99 | ₹3,939.90 |
| 30+ | ₹387.47 | ₹11,624.10 |
| 100+ | ₹380.75 | ₹38,075.00 |
1 × ₹403.98
₹403.98
excl. GST
₹476.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STTH6010W
₹403.98 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 61ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 2V@60A
- Reverse Leakage Current (Ir)
- 20uA@1kV
- Non-Repetitive Peak Forward Surge Current
- 400A
- Current - Rectified
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.467 g
Overview
This diode's high-quality design delivers low leakage current, repeatable characteristics, and inherent ruggedness, making it suitable for heavy-duty applications requiring long-term reliability. The improved low leakage current performance provides thermal runaway protection margin, which is a key competitive advantage of this device. The model is DO-247 STTH6010W, with UL94 V0-compliant encapsulant, conduction cooling (C), recommended torque of 0.80 Nm, and maximum torque of 1.0 Nm.
Applications
- Industrial power supplies, motor control, and mission-critical systems requiring rectification and freewheeling
- Auxiliary functions such as snubbers, bootstrap, and demagnetization
- Applications requiring low leakage current
- Heavy-duty applications demanding long-term reliability
Key features
- Ultra-fast soft recovery
- Extremely low conduction and switching losses
- High-frequency and/or high-pulse-current operation
- High reverse voltage capability
- High junction temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DSEI60-10A#C426669Littelfuse/IXYS · TO-247-2 | Littelfuse/IXYS | TO-247-2 | 239 | ₹626.67 · 239 in stock | View |
 | STTH6012W#C262979ST · DO-247 | ST | DO-247 | 287 | ₹772.74 · 287 in stock | View |
 | STTH6012WL#C5887434ST · DO-247LL | ST | DO-247LL | 1 | ₹665.07 · 1 in stock | View |
 | STTH6010WY#C2965281ST · DO-247-2 | ST | DO-247-2 | On request | ₹872.65 · 0 in stock | View |
