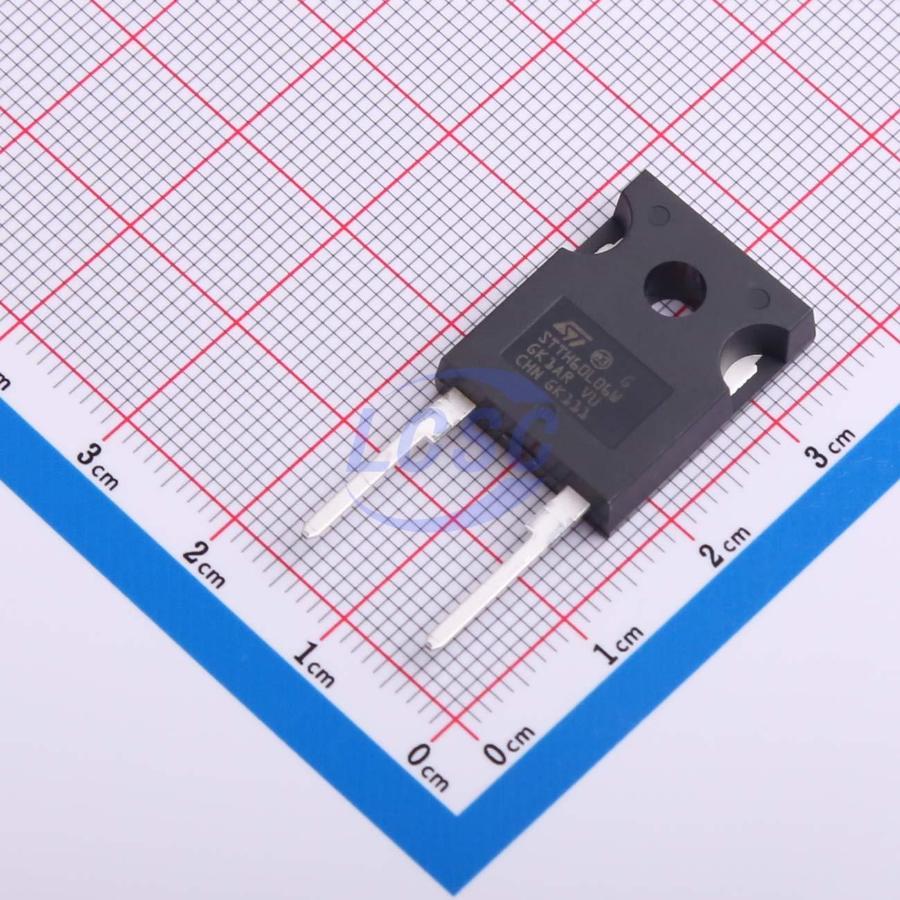

STTH60L06W
105ns 600V 1.55V@60A 60A DO-247 Single Diodes RoHS
Diode 600V 60A DO-247
- Manufacturer
- ST
- Manufacturer part #
- STTH60L06W
- Store part #
- C5268246
- Package / case
- DO-247
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C5268246
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,118.11 | ₹1,118.11 |
| 10+ | ₹1,102.85 | ₹11,028.50 |
| 30+ | ₹1,092.53 | ₹32,775.90 |
| 90+ | ₹1,082.21 | ₹97,398.90 |
1 × ₹1,118.11
₹1,118.11
excl. GST
₹1,319.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STTH60L06W
₹1,118.11 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 105ns
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.55V@60A
- Reverse Leakage Current (Ir)
- 50uA@600V
- Non-Repetitive Peak Forward Surge Current
- 600A
- Current - Rectified
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.3 g
Overview
The STTH60L06 utilizes ST Turbo 2 600V technology and is available in a DO-247 STTH60L06W package. The package material epoxy resin complies with UL94 V0 standard, with conduction (C) cooling method and a recommended torque value of 0.55 to 1.0 N·m. Due to its low V_F characteristics, this device delivers high performance in freewheeling applications. The maximum conduction loss can be evaluated using the following formula: P = 0.93 × I_F(AV) + 0.0045I_F²(RMS).
Applications
- Switching power supplies
- Industrial applications (as rectifier and discontinuous mode PFC boost diodes)
- Freewheeling applications
Key features
- Ultrafast switching
- Low reverse current
- Low thermal resistance
- Reduced switching and conduction losses
