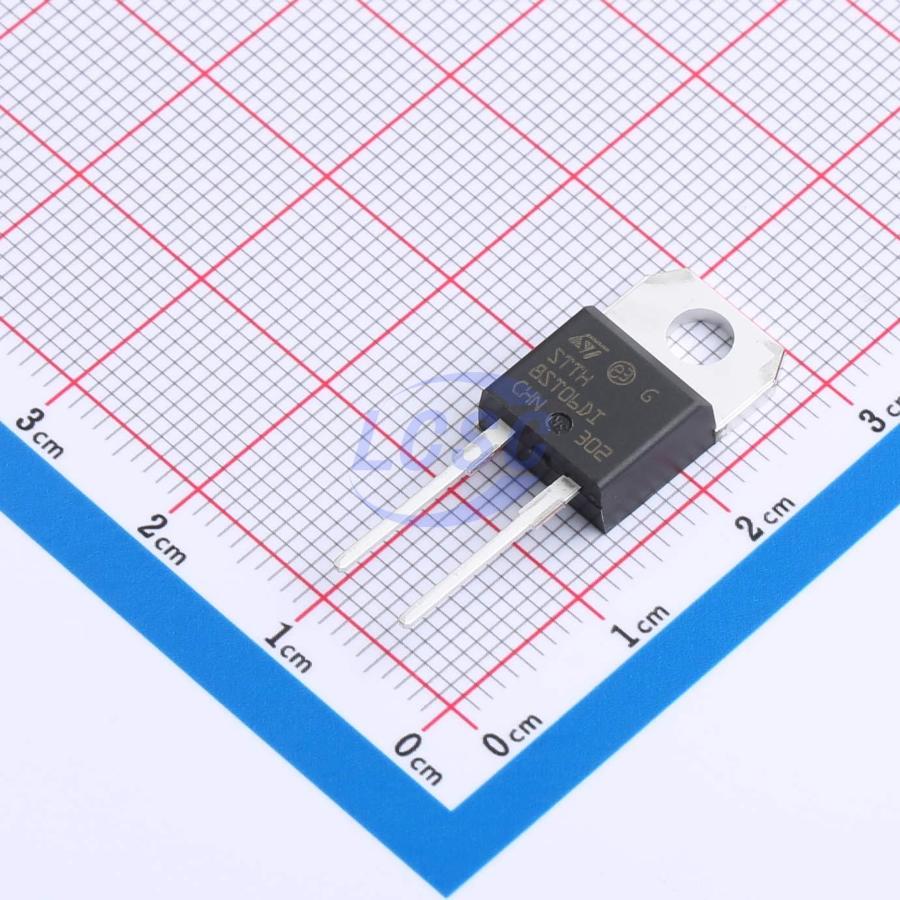

STTH8ST06DI
17ns 1 Pair Series Connection 600V 3.4V@8A 8A TO-220AC-2 Single Diodes RoHS
Diode 600V 8A TO-220AC-2
- Manufacturer
- ST
- Manufacturer part #
- STTH8ST06DI
- Store part #
- C2971207
- Package / case
- TO-220AC-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C2971207
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹364.53 | ₹364.53 |
| 10+ | ₹305.71 | ₹3,057.10 |
| 30+ | ₹268.99 | ₹8,069.70 |
| 100+ | ₹231.43 | ₹23,143.00 |
| 500+ | ₹214.25 | ₹1,07,125.00 |
| 1,000+ | ₹206.96 | ₹2,06,960.00 |
1 × ₹364.53
₹364.53
excl. GST
₹430.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STTH8ST06DI
₹364.53 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 17ns
- Diode Configuration
- 1 Pair Series Connection
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 3.4V@8A
- Reverse Leakage Current (Ir)
- 6uA@600V
- Non-Repetitive Peak Forward Surge Current
- 55A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.054 g
Overview
This device is part of the second-generation 600V series diode family, featuring ultra-low switching losses and minimized QRR, suitable for hard-switching mode circuits. Its Vf/QRR tradeoff positions it between standard ultrafast diodes and SiC Schottky rectifiers in terms of cost-effectiveness. The device offers power supply circuit designers a new option, delivering good performance while meeting cost constraints. Utilizes Turbo 2 600V technology.
Applications
- Hard-switching mode circuits
- Boost diodes in continuous conduction mode power factor correction circuits
Key features
- High voltage rectifier
- Series-connected diodes
- Extremely low switching losses
- Isolated device with internal ceramic
- Equal thermal conditions for both 300V diodes
- Static and dynamic balancing of internal diodes guaranteed by design
- Isolated package, isolation voltage 2500V RMS sinusoidal
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH8T06DI#C672211ST · TO-220AC | ST | TO-220AC | 100 | ₹360.68 · 100 in stock | View |
