VBsemi ElecDatasheet (PDF)

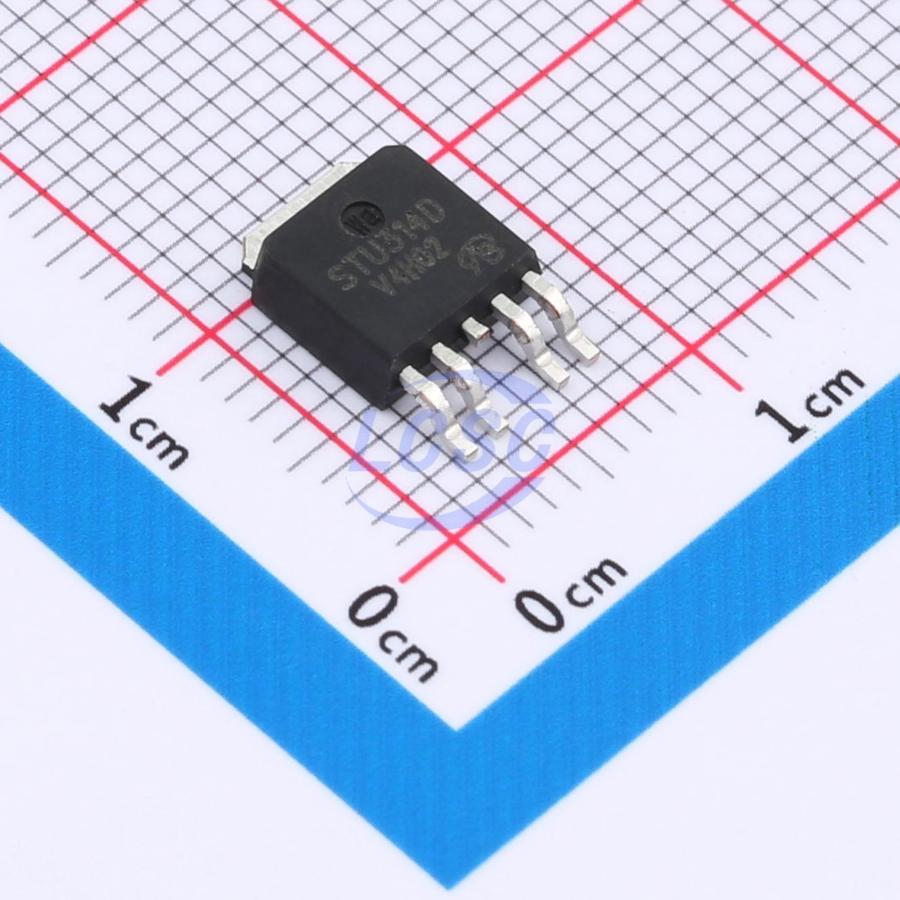

STU314D-VB
N-Channel+P-Channel Array 60V 35A 19A 50W Surface Mount TO-252-4L
TO-252-4LRoHSActive
MOSFET N-CH+P-CH ARR 60V 35A 19A TO-252-4L
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STU314D-VB
- Store part #
- C29779241
- Package / case
- TO-252-4L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29779241
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.06 | ₹89.06 |
| 10+ | ₹71.64 | ₹716.40 |
| 30+ | ₹63.03 | ₹1,890.90 |
| 100+ | ₹54.41 | ₹5,441.00 |
| 500+ | ₹49.37 | ₹24,685.00 |
| 1,000+ | ₹46.64 | ₹46,640.00 |
1 × ₹89.06
₹89.06
excl. GST
₹105.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STU314D-VB
₹89.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 84pF
- Ciss-Input Capacitance
- 1.5nF;1.18nF
- Pd - Power Dissipation
- 50W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 35A;19A
- Reverse Transfer Capacitance (Crss)
- 79pF;60pF
- RDS(on)
- 30mΩ@10V;50mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 9nC@4.5V;10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
- N-channel
- P-channel
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
