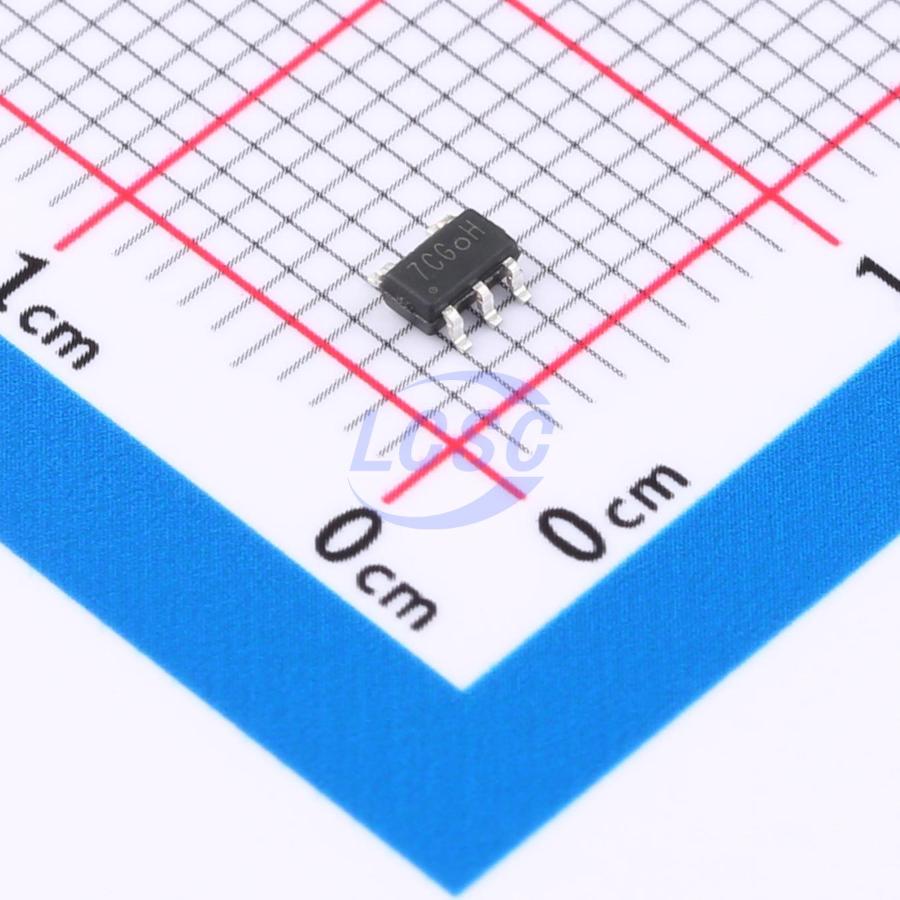

Suntek

SUL6018S5-33

3.3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5LRoHSActive

IC REG LINEAR 3.3V 350mA SOT-23-5L

Manufacturer: Suntek
Manufacturer part #: SUL6018S5-33
Store part #: C49325894
Package / case: SOT-23-5L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,540 in stock

#C49325894

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹44.24	₹221.20
50+	₹34.74	₹1,737.00
150+	₹30.67	₹4,600.50
500+	₹25.59	₹12,795.00
3,000+	₹23.32	₹69,960.00
6,000+	₹21.98	₹1,31,880.00

Quantity (min 5, multiples of 5)

5 × ₹44.24

₹221.20

excl. GST

₹261.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SUL6018S5-33

₹221.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 1.3uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 350mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

SUL6018 is an ultra-compact, ultra-low quiescent current LDO regulator capable of delivering 350mA output current with excellent transient performance. The device features a 1.3μA ultra-low quiescent current, designed specifically for applications where quiescent current is a critical parameter. Even in dropout mode, the device maintains low quiescent current consumption, further extending battery life. The 1.3μA low quiescent current and 0.05μA shutdown current make it ideal for battery-powered applications requiring long service life. Additional features include current limiting, over-temperature protection, and output discharge. The SUL6018 is available in SOT23-5 and DFN-1x1-4L packages. Standard products are lead-free and halogen-free.

Applications

Portable battery-powered devices
Ultra-low-power microcontrollers
Laptop computers

Key features

Input voltage range: 1.2V to 5.5V
Ultra-low quiescent current: 1.3μA
High PSRR: 85dB at 1KHz
Output voltage range: Adjustable mode: 0.8V to 4.5V; Fixed mode: 0.8V~4.5V, 0.05V steps
High output accuracy: ±1%
Ultra-low dropout voltage: 150mV at VOUT ≥ 3V and 350mA output current
Low noise: 30 µVrms
Current limiting protection
Over-temperature protection
Output active discharge function
