VBsemi ElecDatasheet (PDF)

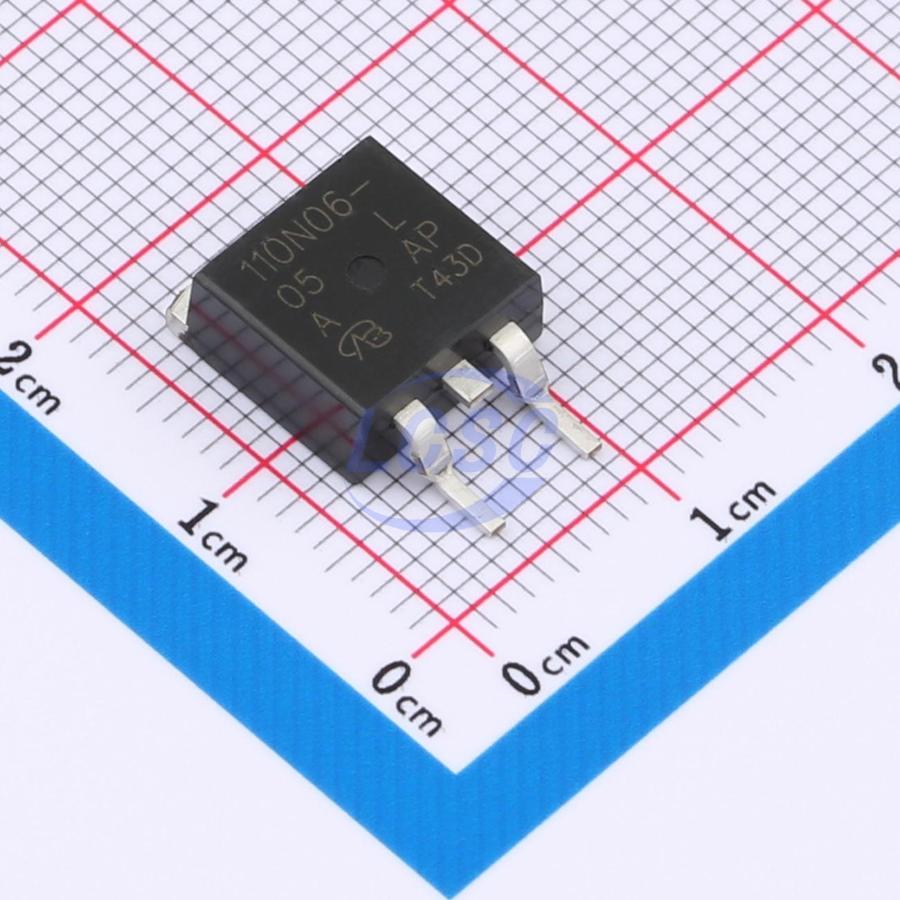

SUM110N06-05L-VB
N-Channel 60V 150A 220W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 150A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SUM110N06-05L-VB
- Store part #
- C29779371
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779371
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.96 | ₹136.96 |
| 10+ | ₹110.29 | ₹1,102.90 |
| 50+ | ₹97.06 | ₹4,853.00 |
| 100+ | ₹83.81 | ₹8,381.00 |
| 500+ | ₹75.83 | ₹37,915.00 |
| 1,000+ | ₹71.84 | ₹71,840.00 |
1 × ₹136.96
₹136.96
excl. GST
₹161.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SUM110N06-05L-VB
₹136.96 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 715pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 7nF
- Pd - Power Dissipation
- 220W
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 96nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.62 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK6607-55C-VB#C22389266VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
 | BUK7611-55B-VB#C22389267VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
 | IPB081N06L3G-VB#C22389523VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 7 | ₹136.96 · 7 in stock | View |
 | SUM110N05-06L-VB#C22389609VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
 | B150NF55-VB#C22389710VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
