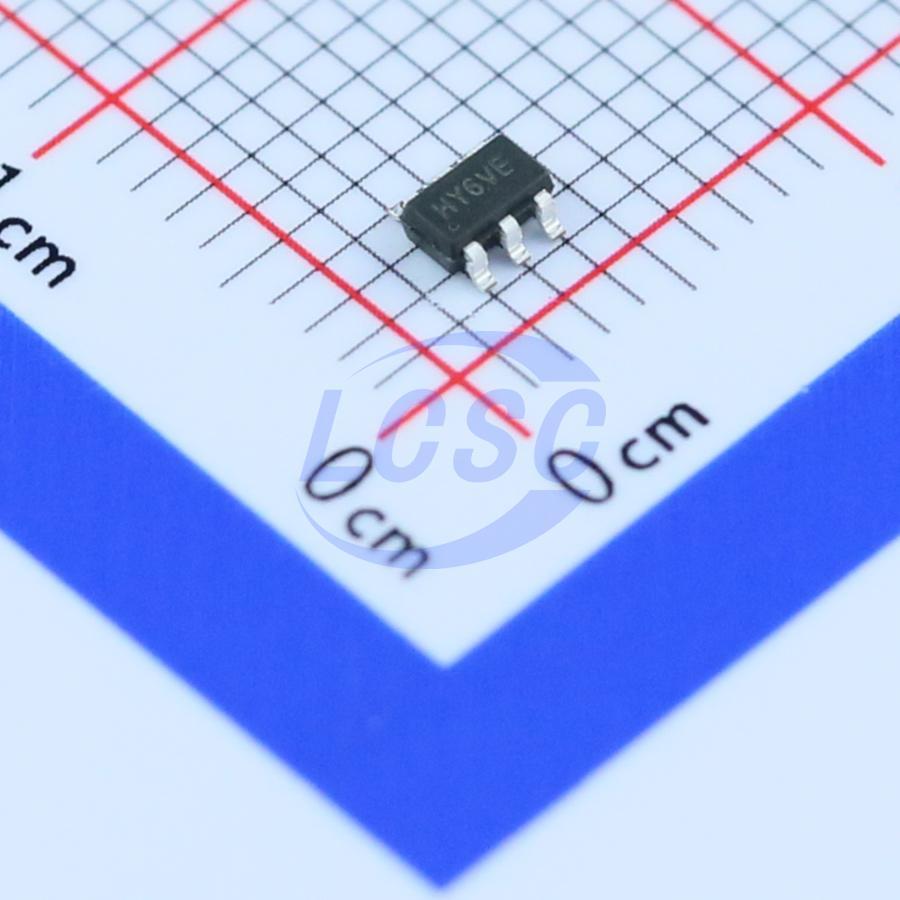

Silergy

SY7200AABC

1MHz 1 Boost DC-DC 2A 2.8V~30V SOT-23-6 LED Drivers ICs

SOT-23-6RoHSActive

30V High Current Boost LED Driver

Manufacturer: Silergy
Manufacturer part #: SY7200AABC
Store part #: C107309
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,63,580 in stock

#C107309

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹27.39	₹136.95
50+	₹20.94	₹1,047.00
150+	₹17.79	₹2,668.50
500+	₹14.99	₹7,495.00
3,000+	₹14.22	₹42,660.00
6,000+	₹13.76	₹82,560.00

Quantity (min 5, multiples of 5)

5 × ₹27.39

₹136.95

excl. GST

₹161.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SY7200AABC

₹136.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Over Voltage Protection;Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 1
Topology: Boost
Type: DC-DC
Output Current: 2A
Voltage - Input(DC): 2.8V~30V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.058 g

Overview

SY7200A is a DC/DC boost converter that delivers precise constant current for LED driving. Operating at a fixed switching frequency of 1MHz, it allows the use of small-value external ceramic capacitors and inductors. The regulated current is set via an external resistor, driving series-connected LEDs. The device is ideally suited for driving up to eight series-connected white LEDs or voltages up to 30V.
