onsemiDatasheet (PDF)

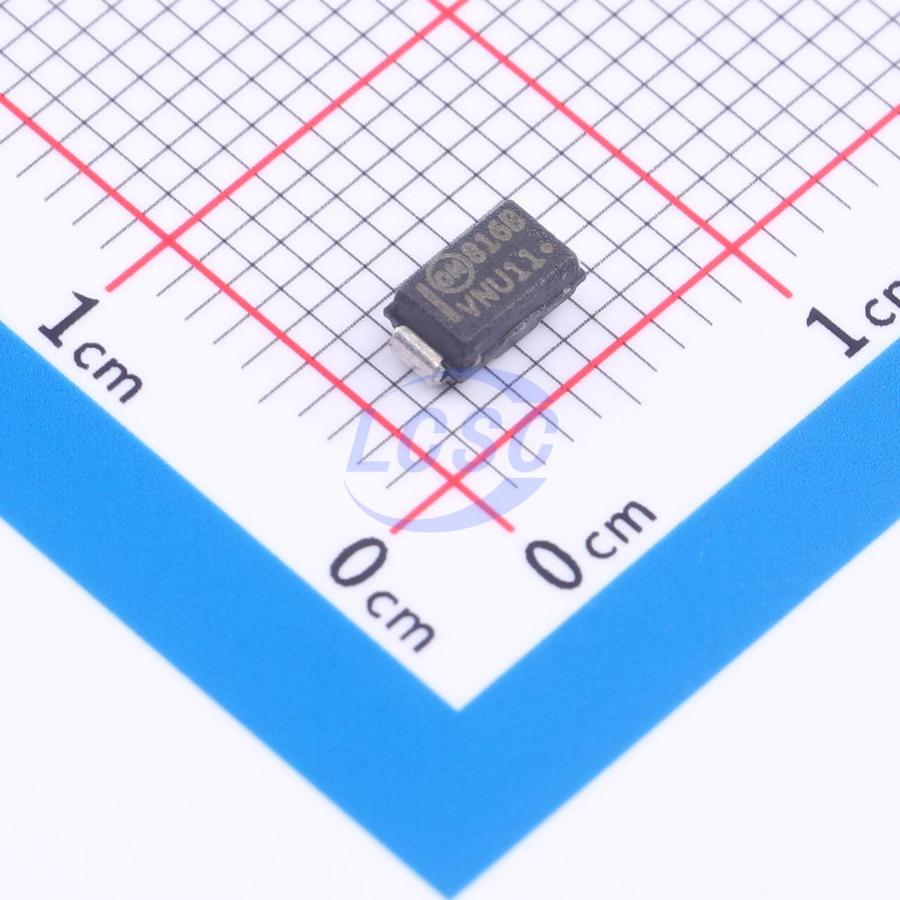

SZ1SMA5916BT3G
1 Independent 4.08V~4.52V 4.3V SMA Single Zener Diodes RoHS
SMAROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMA5916BT3G
- Store part #
- C896063
- Package / case
- SMA
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C896063
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.01 | ₹104.01 |
| 10+ | ₹101.84 | ₹1,018.40 |
| 30+ | ₹100.10 | ₹3,003.00 |
| 100+ | ₹98.58 | ₹9,858.00 |
1 × ₹104.01
₹104.01
excl. GST
₹122.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SZ1SMA5916BT3G
₹104.01 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 1.5W
- Reverse Leakage Current (Ir)
- 2.5uA@1V
- Impedance(Zzt)
- 6Ω
- Zener Voltage(Range)
- 4.08V~4.52V
- Zener Voltage(Nom)
- 4.3V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.138 g
Overview
Key features
- Standard Zener Breakdown Voltage Range - 3.3 V to 68 V
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Slide or Bottom Circuit Board Mounting
- Low Profile Package
- Ideal Replacement for MELF Packages
- AEC - Q101 Qualified and PPAP Capable - SZ1SMA59xxBT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA5916A#C5293618JSCJ · SMAG | JSCJ | SMAG | 1,755 | ₹10.91 · 1,755 in stock | View |
 | 1SMA5916A#C49375317R+O · SMA | R+O | SMA | 63,910 | ₹6.69 · 63,910 in stock | View |
 | 1SMA5916BT3G#C146725onsemi · SMA | onsemi | SMA | 8,865 | ₹31.83 · 8,865 in stock | View |
 | 1SMA5916BT3G-MS#C18547724MSKSEMI · SMA | MSKSEMI | SMA | 620 | ₹7.14 · 620 in stock | View |
 | SMA5916A#C5161048ZHIDE · SMA | ZHIDE | SMA | 345 | ₹12.79 · 345 in stock | View |
