onsemiDatasheet (PDF)

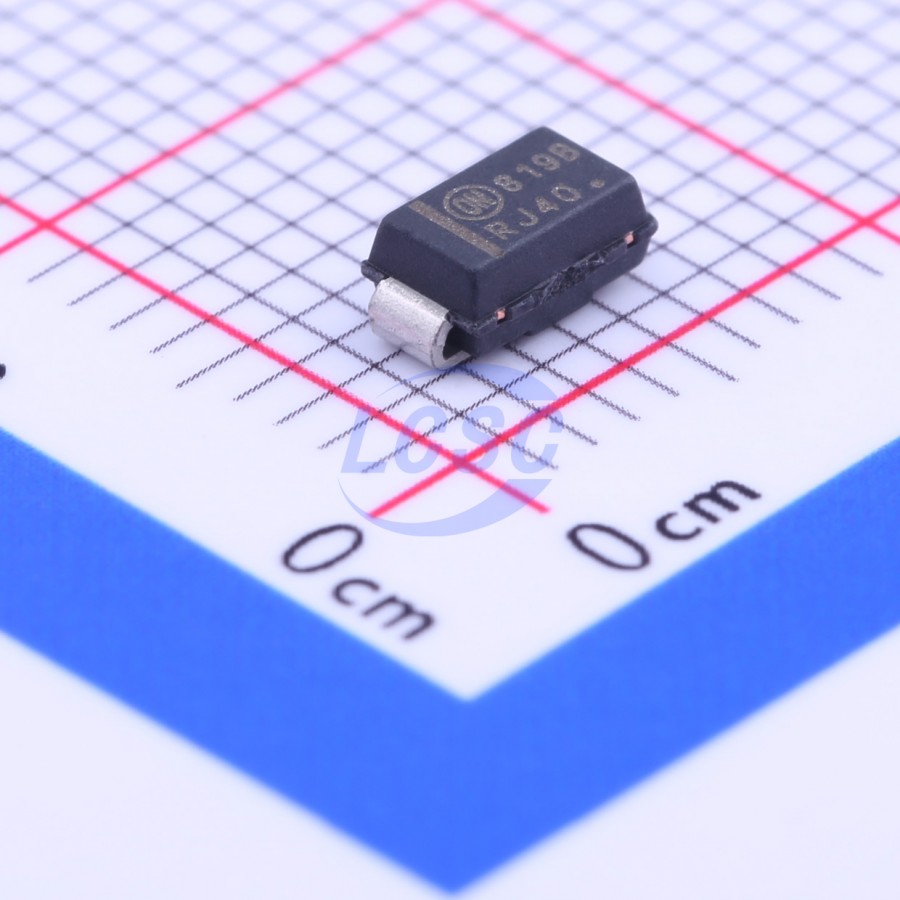

SZ1SMA5919BT3G
Zener Diode Independent 5.6V 0.5W Surface Mount SMA
SMAROHS3 CompliantActive
DIODE ZENER 5.6V 0.5W SMA
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMA5919BT3G
- Store part #
- C152472
- Package / case
- SMA
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C152472
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.21 | ₹176.05 |
| 50+ | ₹27.95 | ₹1,397.50 |
| 150+ | ₹24.85 | ₹3,727.50 |
| 500+ | ₹20.96 | ₹10,480.00 |
| 2,500+ | ₹19.24 | ₹48,100.00 |
| 5,000+ | ₹18.19 | ₹90,950.00 |
5 × ₹35.21
₹176.05
excl. GST
₹207.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SZ1SMA5919BT3G
₹176.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 2.5uA@3V
- Impedance(Zzt)
- 2Ω
- Zener Voltage(Range)
- 5.32V~5.88V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Overview
Key features
- Standard Zener Breakdown Voltage Range - 3.3V to 68 V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Slide or Bottom Circuit Board Mounting
- Low Profile Package
- Ideal Replacement for MELF Packages
- AEC - Q101 Qualified and PPAP Capable - SZ1SMA59xxBT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA5919BT3G-MS#C18547727MSKSEMI · SMA | MSKSEMI | SMA | 1,800 | ₹7.59 · 1,800 in stock | View |
 | 1SMA5919BT3G#C20555onsemi · SMA | onsemi | SMA | 11,665 | ₹22.16 · 11,665 in stock | View |
 | 1SMA5919A#C5293615JSCJ · SMAG | JSCJ | SMAG | 4,995 | ₹12.30 · 4,995 in stock | View |
 | SMAZ5V6-MS#C22459341MSKSEMI · SMA(DO-214AC) | MSKSEMI | SMA(DO-214AC) | 1,890 | ₹11.14 · 1,890 in stock | View |
 | SMAZ5V6-TP#C7083180MCC · DO-214AC(SMAJ) | MCC | DO-214AC(SMAJ) | 2,240 | ₹17.40 · 2,240 in stock | View |
