onsemiDatasheet (PDF)

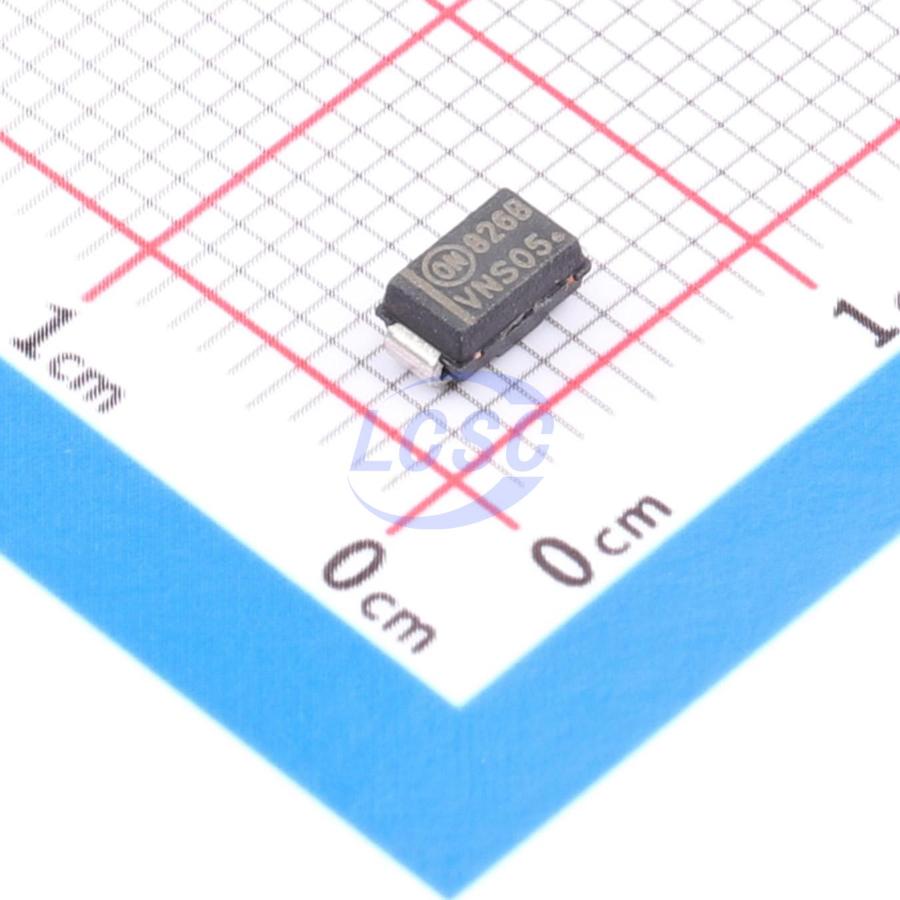

SZ1SMA5926BT3G
1 Independent 10.45V~11.55V 11V SMA Single Zener Diodes RoHS
SMAROHS3 CompliantActive
DIODE ZENER 11V 500mW SMA
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMA5926BT3G
- Store part #
- C896069
- Package / case
- SMA
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
106 in stock
#C896069
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.59 | ₹105.59 |
| 10+ | ₹103.00 | ₹1,030.00 |
| 30+ | ₹101.47 | ₹3,044.10 |
| 100+ | ₹99.74 | ₹9,974.00 |
1 × ₹105.59
₹105.59
excl. GST
₹124.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SZ1SMA5926BT3G
₹105.59 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 500nA@8.4V
- Impedance(Zzt)
- 5.5Ω
- Zener Voltage(Range)
- 10.45V~11.55V
- Zener Voltage(Nom)
- 11V
- Impedance(Zzk)
- 550Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.168 g
Overview
Key features
- Standard Zener Breakdown Voltage Range - 3.3 V to 68 V
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Slide or Bottom Circuit Board Mounting
- Low Profile Package
- Ideal Replacement for MELF Packages
- AEC - Q101 Qualified and PPAP Capable - SZ1SMA59xxBT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SMAZ5926B-E3/61#C7316730VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 180 | ₹25.51 · 180 in stock | View | |
 | 1SMA5926B#C5183385LGE · DO-214AC(SMA) | LGE | DO-214AC(SMA) | 4,510 | ₹9.49 · 4,510 in stock | View |
 | SMA5926A#C5161057ZHIDE · DO-214AC(SMA) | ZHIDE | DO-214AC(SMA) | 4,630 | ₹7.53 · 4,630 in stock | View |
 | 1SMA4741A#C22449606GOODWORK · SMA | GOODWORK | SMA | 220 | ₹4.38 · 220 in stock | View |
 | 1SMA4741A#C5353096FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 2,780 | ₹4.66 · 2,780 in stock | View |
