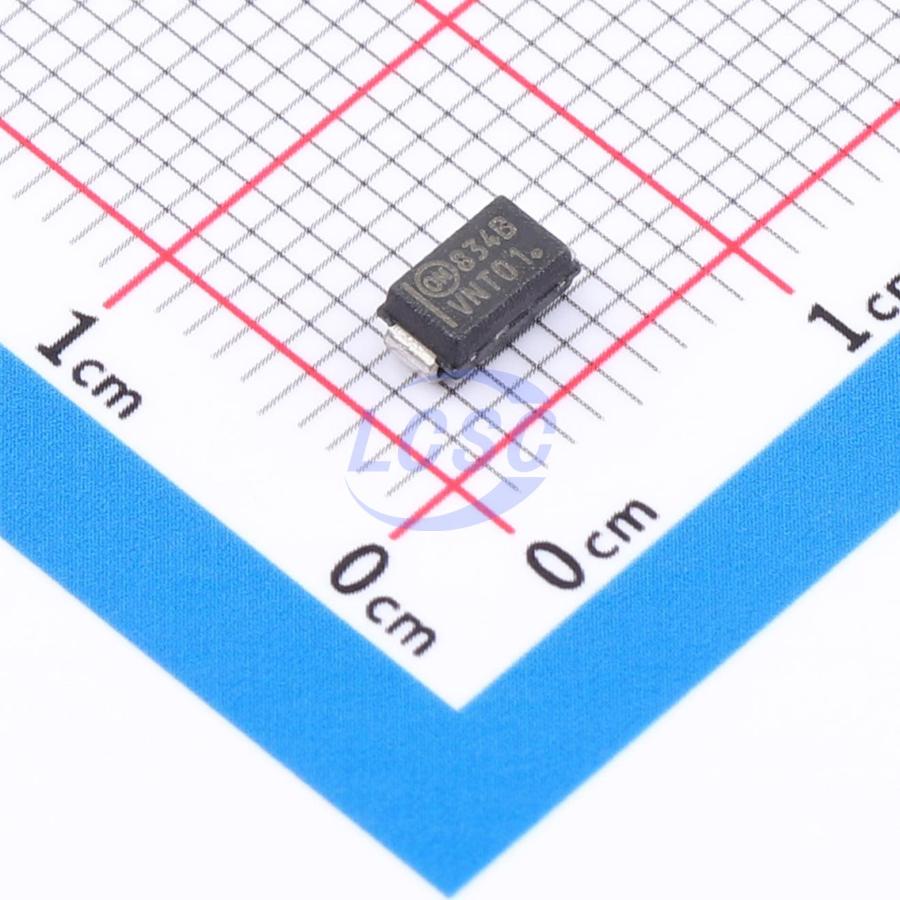

SZ1SMA5934BT3G
1 Independent 22.8V~25.2V 24V SMA Single Zener Diodes RoHS
SMAROHS3 CompliantActive
DIODE ZENER 24V 1.5W SMA
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMA5934BT3G
- Store part #
- C896072
- Package / case
- SMA
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C896072
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.75 | ₹128.75 |
| 10+ | ₹126.61 | ₹1,266.10 |
| 30+ | ₹125.10 | ₹3,753.00 |
| 100+ | ₹123.81 | ₹12,381.00 |
1 × ₹128.75
₹128.75
excl. GST
₹151.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SZ1SMA5934BT3G
₹128.75 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 1.5W
- Reverse Leakage Current (Ir)
- 500nA@18.2V
- Impedance(Zzt)
- 19Ω
- Zener Voltage(Range)
- 22.8V~25.2V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 700Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.108 g
Overview
Key features
- Standard Zener Breakdown Voltage Range - 3.3 V to 68 V
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Slide or Bottom Circuit Board Mounting
- Low Profile Package
- Ideal Replacement for MELF Packages
- AEC - Q101 Qualified and PPAP Capable - SZ1SMA59xxBT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
