onsemiDatasheet (PDF)

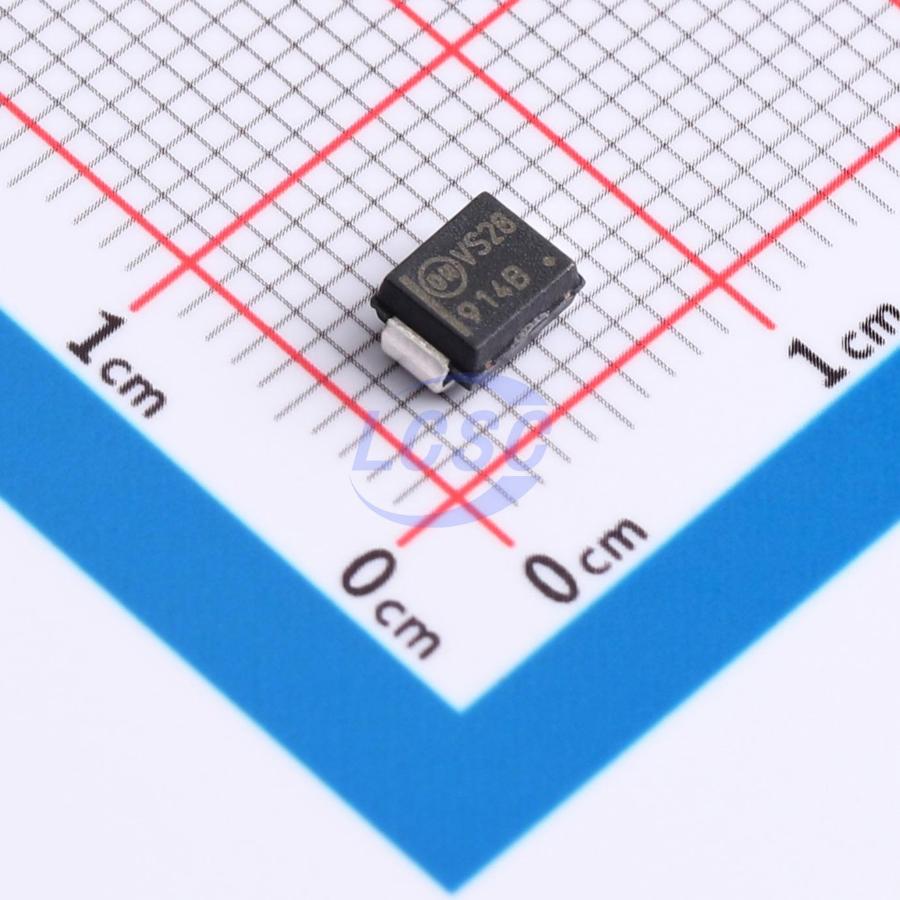

SZ1SMB5914BT3G
1 Independent 3.42V~3.78V 3.6V SMB Single Zener Diodes RoHS
SMBROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMB5914BT3G
- Store part #
- C889918
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
146 in stock
#C889918
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.85 | ₹170.85 |
| 10+ | ₹140.71 | ₹1,407.10 |
| 30+ | ₹124.24 | ₹3,727.20 |
| 100+ | ₹105.59 | ₹10,559.00 |
| 500+ | ₹97.36 | ₹48,680.00 |
| 1,000+ | ₹93.67 | ₹93,670.00 |
1 × ₹170.85
₹170.85
excl. GST
₹201.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB5914BT3G
₹170.85 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 75uA@1V
- Impedance(Zzt)
- 9Ω
- Zener Voltage(Range)
- 3.42V~3.78V
- Zener Voltage(Nom)
- 3.6V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.174 g
Overview
Key features
- Zener Voltage Range - 3.3 V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Side or Bottom Circuit Board Mounting
- AEC - Q101 Qualified and PPAP Capable - SZ1SMB59xxT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMB5914BT3G-MS#C18547780MSKSEMI · SMB | MSKSEMI | SMB | 2,520 | ₹31.17 · 2,520 in stock | View |
 | 1SMB5914B#C713654LGE · SMB | LGE | SMB | 2,000 | ₹21.34 · 2,000 in stock | View |
 | SMB3Z3.6A#C5161121ZHIDE · SMB | ZHIDE | SMB | 10 | ₹28.40 · 10 in stock | View |
 | 1SMB5914BT3G#C129230onsemi · SMB | onsemi | SMB | 3,870 | ₹24.17 · 3,870 in stock | View |
 | 1SMB5914B#C2922206GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 3,290 | ₹8.51 · 3,290 in stock | View |
