onsemiDatasheet (PDF)

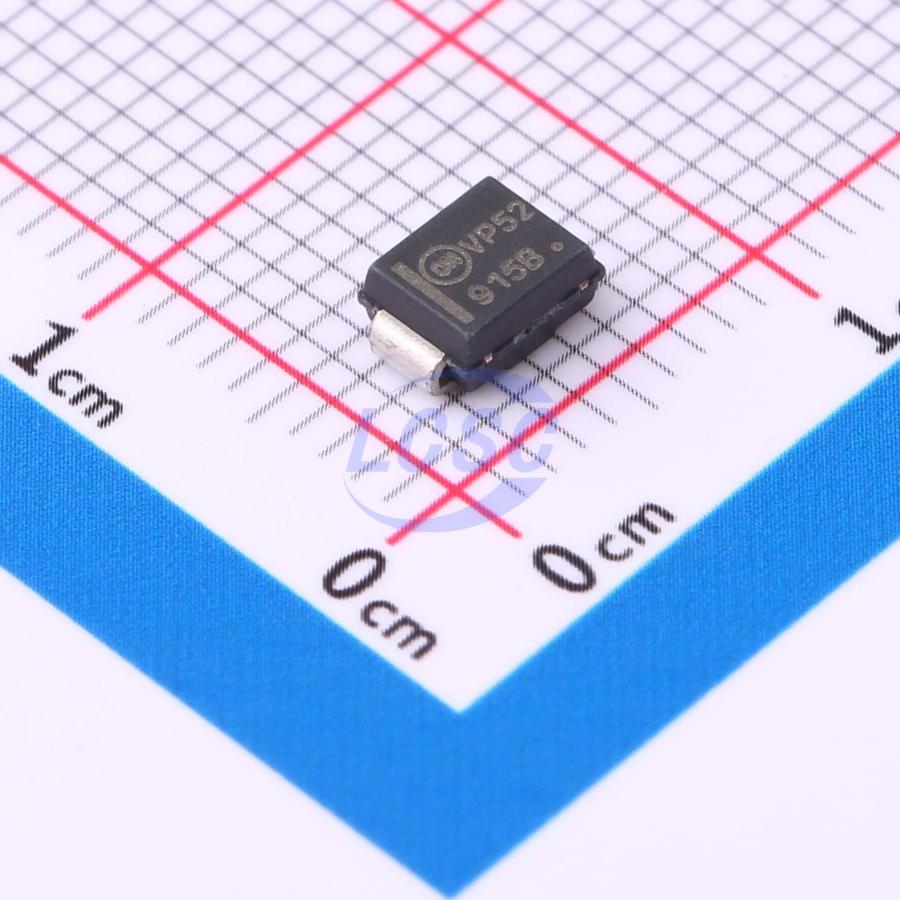

SZ1SMB5915BT3G
Zener Diode 3.9V 550mW Surface Mount SMB
SMBROHS3 CompliantActive
DIODE ZENER 3.9V 550mW SMB
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMB5915BT3G
- Store part #
- C889919
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
234 in stock
#C889919
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.43 | ₹102.43 |
| 10+ | ₹83.28 | ₹832.80 |
| 30+ | ₹73.94 | ₹2,218.20 |
| 100+ | ₹64.59 | ₹6,459.00 |
| 500+ | ₹58.94 | ₹29,470.00 |
| 1,000+ | ₹56.11 | ₹56,110.00 |
1 × ₹102.43
₹102.43
excl. GST
₹120.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB5915BT3G
₹102.43 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 25uA@1V
- Impedance(Zzt)
- 7.5Ω
- Zener Voltage(Range)
- 3.7V~4.1V
- Zener Voltage(Nom)
- 3.9V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.229 g
Overview
Key features
- Zener Voltage Range - 3.3 V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Side or Bottom Circuit Board Mounting
- AEC - Q101 Qualified and PPAP Capable - SZ1SMB59xxT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMB5915B#C5174497LGE · SMB | LGE | SMB | 415 | ₹10.69 · 415 in stock | View |
 | 1SMB5915BT3G#C152473onsemi · SMB | onsemi | SMB | 14,060 | ₹25.41 · 14,060 in stock | View |
 | 1SMB5915B#C5248042GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 3,890 | ₹7.91 · 3,890 in stock | View |
 | 1SMB5915BG#C3151752Shikues · SMB | Shikues | SMB | 180 | ₹6.31 · 180 in stock | View |
 | 1SMB5915B#C49242718PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 980 | ₹11.19 · 980 in stock | View |
