onsemiDatasheet (PDF)

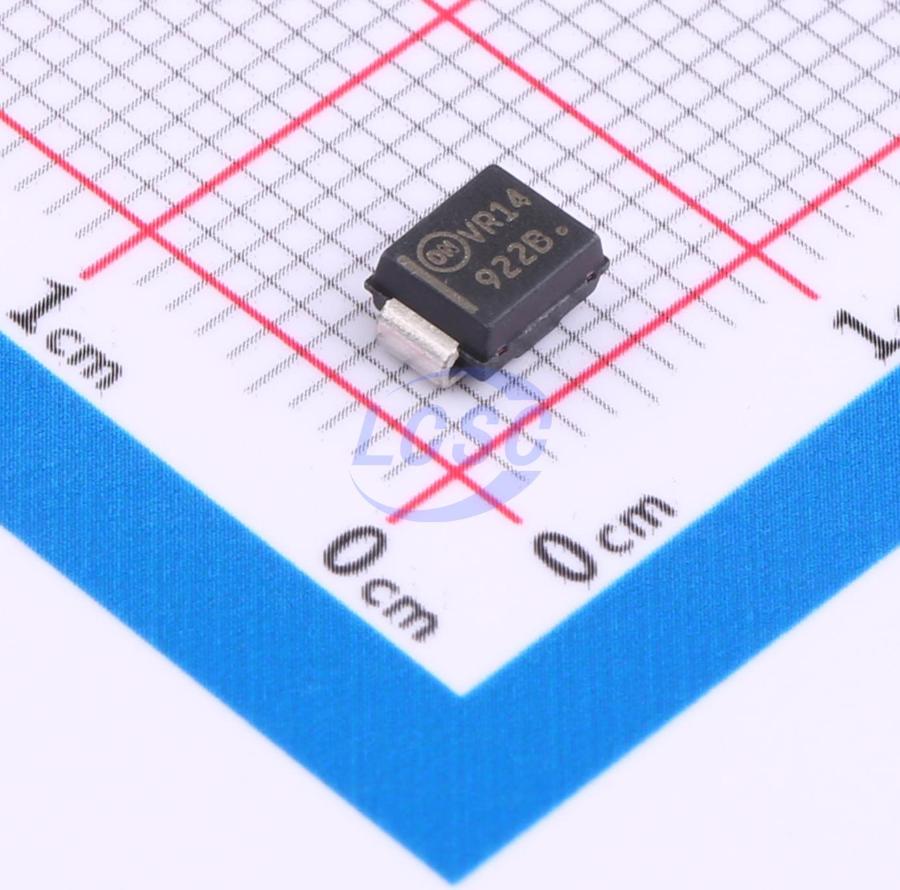

SZ1SMB5922BT3G
Zener Diode Independent 7.5V 550mW Surface Mount SMB
SMBROHS3 CompliantActive
DIODE ZENER 7.5V 550mW SMB
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMB5922BT3G
- Store part #
- C604751
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C604751
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.95 | ₹98.95 |
| 10+ | ₹80.68 | ₹806.80 |
| 30+ | ₹71.55 | ₹2,146.50 |
| 100+ | ₹62.42 | ₹6,242.00 |
| 500+ | ₹56.98 | ₹28,490.00 |
| 1,000+ | ₹54.15 | ₹54,150.00 |
1 × ₹98.95
₹98.95
excl. GST
₹116.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB5922BT3G
₹98.95 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 5uA@6V
- Impedance(Zzt)
- 3Ω
- Zener Voltage(Range)
- 7.12V~7.88V
- Zener Voltage(Nom)
- 7.5V
- Impedance(Zzk)
- 400Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.138 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMB5922B#C42394981YFW · SMB | YFW | SMB | 460 | ₹9.86 · 460 in stock | View |
 | 1SMB5922B#C4749109Jingdao Microelectronics · SMB | Jingdao Microelectronics | SMB | 4 | ₹10.93 · 4 in stock | View |
 | 1SMB5922B-13#C5336804DIODES · SMB | DIODES | SMB | 85 | ₹22.01 · 85 in stock | View |
 | 1SMB5922B#C5244669DIODES · SMB | DIODES | SMB | 40 | ₹48.67 · 40 in stock | View |
 | 1SMB5922BT3G#C50528onsemi · SMB | onsemi | SMB | 7,325 | ₹30.02 · 7,325 in stock | View |
