onsemiDatasheet (PDF)

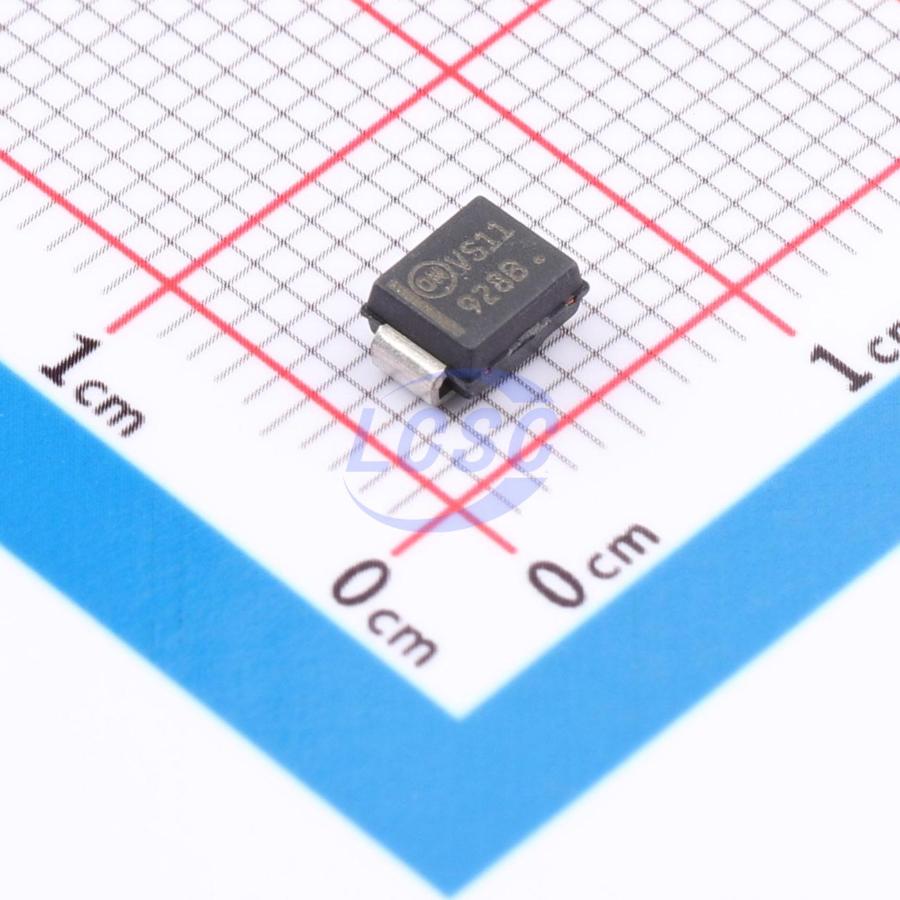

SZ1SMB5928BT3G
1 Independent 12.35V~13.65V 13V SMB Single Zener Diodes RoHS
SMBROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMB5928BT3G
- Store part #
- C889927
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C889927
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.02 | ₹98.02 |
| 10+ | ₹96.30 | ₹963.00 |
| 30+ | ₹95.00 | ₹2,850.00 |
| 100+ | ₹93.93 | ₹9,393.00 |
1 × ₹98.02
₹98.02
excl. GST
₹115.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB5928BT3G
₹98.02 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@9.9V
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 12.35V~13.65V
- Zener Voltage(Nom)
- 13V
- Impedance(Zzk)
- 550Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.191 g
Overview
Key features
- Zener Voltage Range - 3.3 V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Side or Bottom Circuit Board Mounting
- AEC - Q101 Qualified and PPAP Capable - SZ1SMB59xxT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 3SMB5928B#C2983224LGE · SMB | LGE | SMB | 2,630 | ₹24.37 · 2,630 in stock | View |
 | TP1SMB5928BT3G#C49452362TECH PUBLIC · SMB | TECH PUBLIC | SMB | 1,640 | ₹14.90 · 1,640 in stock | View |
 | 1SMB5928BT3G-MS#C18547788MSKSEMI · SMB | MSKSEMI | SMB | 2,500 | ₹13.93 · 2,500 in stock | View |
 | 1SMB5928B#C2978897EIC · SMB | EIC | SMB | 7 | ₹21.06 · 7 in stock | View |
 | 1SMB5928BT3G#C53168onsemi · SMB | onsemi | SMB | 14,525 | ₹21.41 · 14,525 in stock | View |
