onsemiDatasheet (PDF)

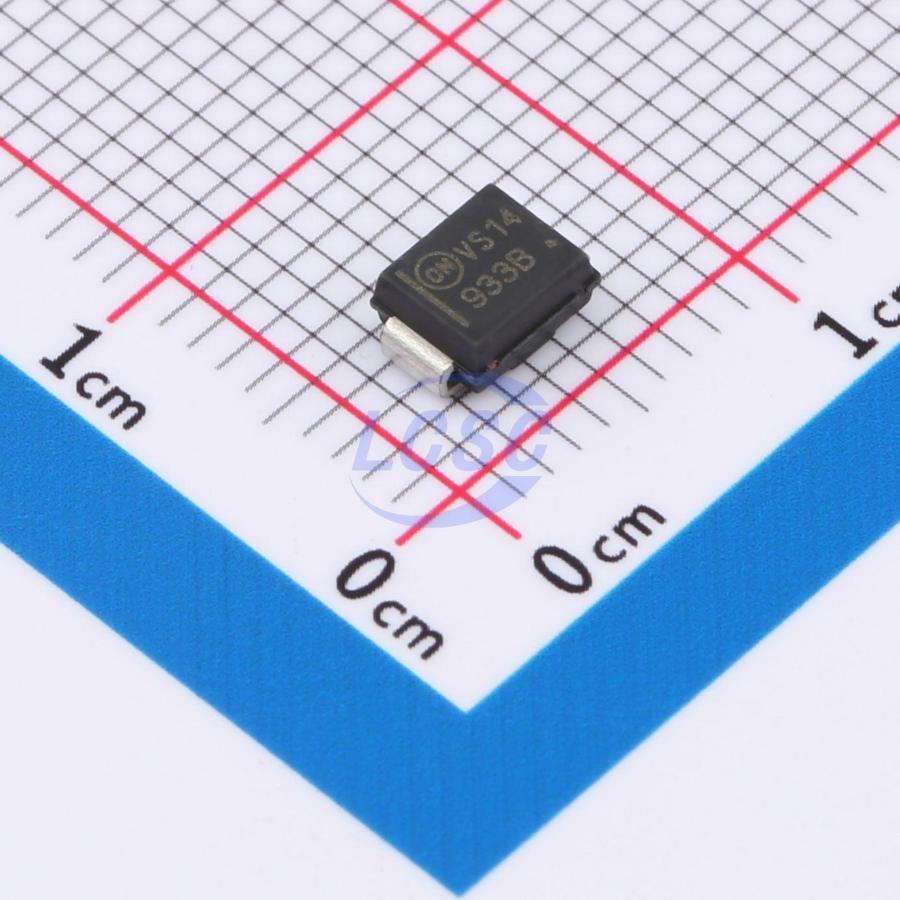

SZ1SMB5933BT3G
Zener Diode 1 Independent 22V 550mW Surface Mount SMB
SMBROHS3 CompliantActive
DIODE ZENER 22V 550mW SMB
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMB5933BT3G
- Store part #
- C889931
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,559 in stock
#C889931
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.18 | ₹57.18 |
| 10+ | ₹51.11 | ₹511.10 |
| 30+ | ₹48.18 | ₹1,445.40 |
| 100+ | ₹45.25 | ₹4,525.00 |
| 500+ | ₹43.37 | ₹21,685.00 |
| 1,000+ | ₹42.52 | ₹42,520.00 |
1 × ₹57.18
₹57.18
excl. GST
₹67.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB5933BT3G
₹57.18 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 17.5Ω
- Zener Voltage(Range)
- 20.9V~23.1V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 650Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
Key features
- Zener Voltage Range - 3.3 V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Side or Bottom Circuit Board Mounting
- AEC - Q101 Qualified and PPAP Capable - SZ1SMB59xxT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMB5933B#C55073107YFW · SMB | YFW | SMB | 100 | ₹9.63 · 100 in stock | View |
 | 1SMB5933B#C46956730OTW · SMB | OTW | SMB | 50 | ₹4.84 · 50 in stock | View |
 | 1SMB5933BT3G#C94390onsemi · SMB | onsemi | SMB | 8,800 | ₹24.04 · 8,800 in stock | View |
 | 1SMB5933B#C4749107Jingdao Microelectronics · SMB | Jingdao Microelectronics | SMB | 10 | ₹8.61 · 10 in stock | View |
 | 1SMB5933B#C5444842LGE · SMB | LGE | SMB | 1,685 | ₹17.44 · 1,685 in stock | View |
