onsemiDatasheet (PDF)

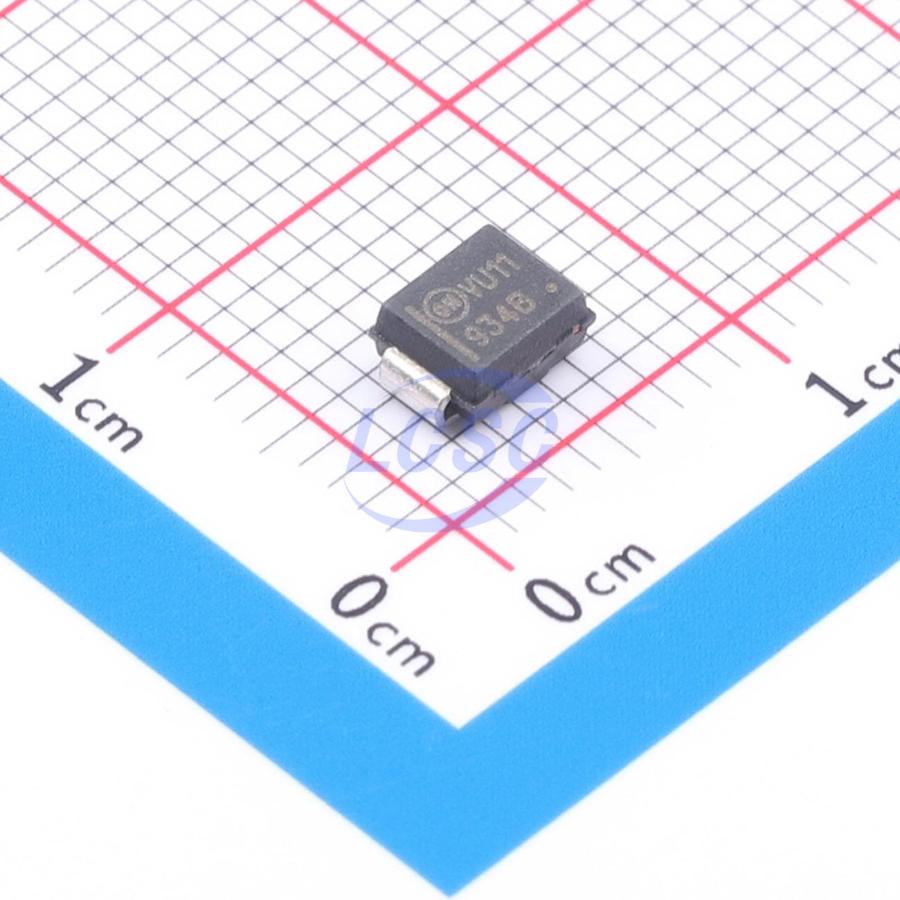

SZ1SMB5934BT3G
1 Independent 22.8V~25.2V 24V SMB Single Zener Diodes RoHS
SMBROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMB5934BT3G
- Store part #
- C889932
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
142 in stock
#C889932
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.82 | ₹92.82 |
| 10+ | ₹90.68 | ₹906.80 |
| 30+ | ₹89.18 | ₹2,675.40 |
| 100+ | ₹87.90 | ₹8,790.00 |
1 × ₹92.82
₹92.82
excl. GST
₹109.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB5934BT3G
₹92.82 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@18.2V
- Impedance(Zzt)
- 19Ω
- Zener Voltage(Range)
- 22.8V~25.2V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 700Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Key features
- Zener Voltage Range - 3.3 V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Side or Bottom Circuit Board Mounting
- AEC - Q101 Qualified and PPAP Capable - SZ1SMB59xxT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMB5934B#C2992891MDD(Microdiode Semiconductor) · SMB | MDD(Microdiode Semiconductor) | SMB | 2,820 | ₹17.45 · 2,820 in stock | View |
 | 3SMBJ5934B-TP#C668859MCC · SMB(DO-214AA) | MCC | SMB(DO-214AA) | 400 | ₹23.38 · 400 in stock | View |
 | 1SMB5934B#C7466342amsem · SMB | amsem | SMB | 1,840 | ₹17.68 · 1,840 in stock | View |
 | TP1SMB5934BT3G#C49452368TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,810 | ₹14.90 · 2,810 in stock | View |
 | 3SMB5934B#C7421458LGE · SMB | LGE | SMB | 365 | ₹18.03 · 365 in stock | View |
