onsemiDatasheet (PDF)

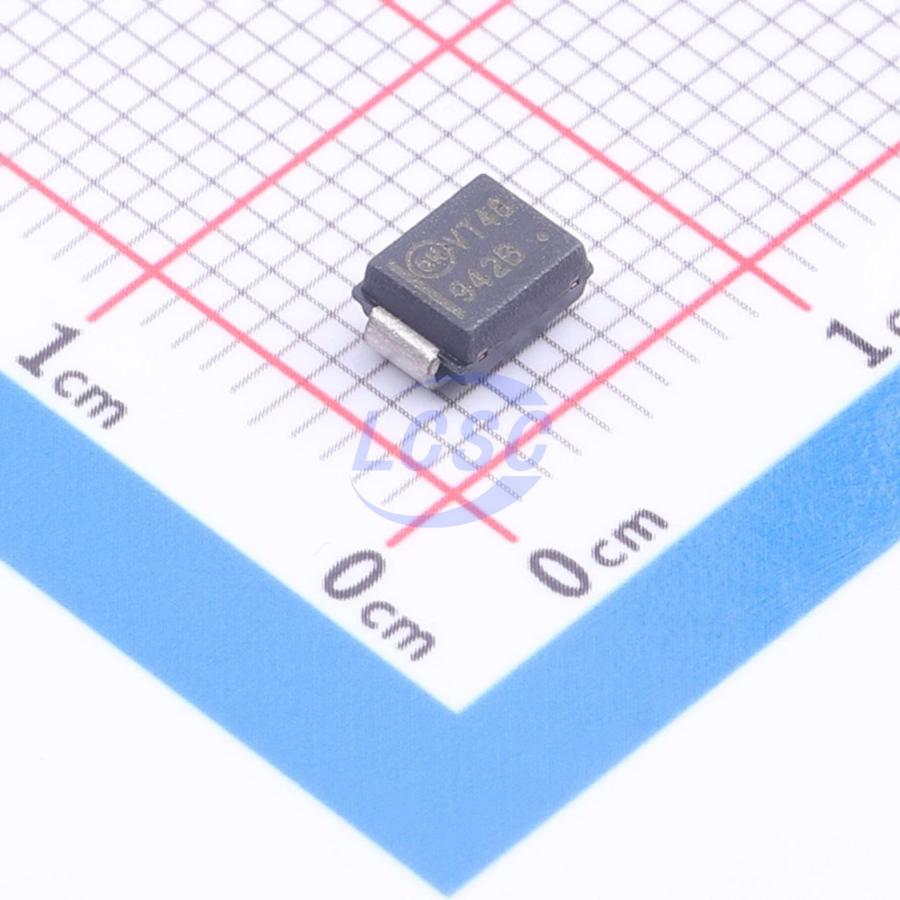

SZ1SMB5942BT3G
1 Independent 48.45V~53.55V 51V SMB Single Zener Diodes RoHS
SMBROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMB5942BT3G
- Store part #
- C889940
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C889940
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.35 | ₹114.35 |
| 10+ | ₹112.42 | ₹1,124.20 |
| 30+ | ₹110.92 | ₹3,327.60 |
| 100+ | ₹109.62 | ₹10,962.00 |
1 × ₹114.35
₹114.35
excl. GST
₹134.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB5942BT3G
₹114.35 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@38.8V
- Impedance(Zzt)
- 70Ω
- Zener Voltage(Range)
- 48.45V~53.55V
- Zener Voltage(Nom)
- 51V
- Impedance(Zzk)
- 1.1kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
Key features
- Zener Voltage Range - 3.3 V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Side or Bottom Circuit Board Mounting
- AEC - Q101 Qualified and PPAP Capable - SZ1SMB59xxT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMB5942B#C22438310PAKER · SMB | PAKER | SMB | 2,980 | ₹7.22 · 2,980 in stock | View |
 | TP1SMB5942BT3G#C49452376TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,870 | ₹14.90 · 2,870 in stock | View |
 | 1SMB5942B#C55073103YFW · SMB | YFW | SMB | 100 | ₹9.63 · 100 in stock | View |
 | 1SMB5942B#C5455749LGE · SMB | LGE | SMB | 2,855 | ₹17.21 · 2,855 in stock | View |
 | 1SMB5942BT3G#C152465onsemi · SMB | onsemi | SMB | 120 | ₹40.13 · 120 in stock | View |
