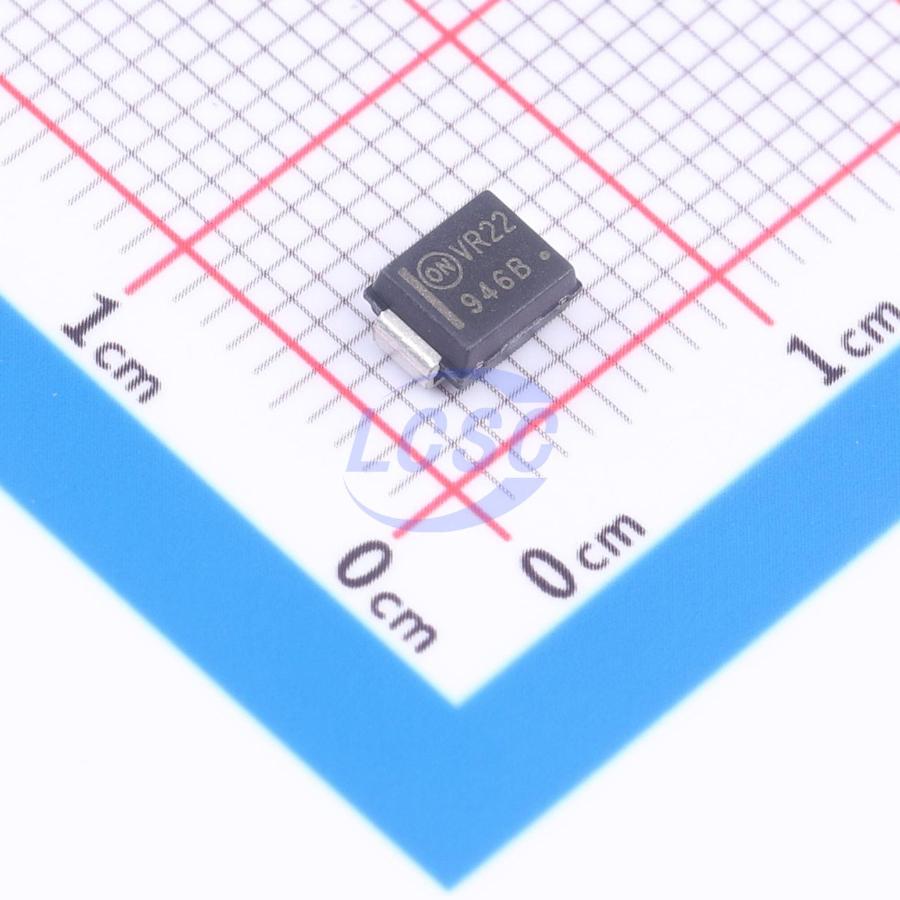

SZ1SMB5946BT3G
1 Independent 71.25V~78.75V 75V SMB Single Zener Diodes RoHS
SMBROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMB5946BT3G
- Store part #
- C889944
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C889944
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.43 | ₹103.43 |
| 10+ | ₹101.04 | ₹1,010.40 |
| 30+ | ₹99.53 | ₹2,985.90 |
| 100+ | ₹98.01 | ₹9,801.00 |
1 × ₹103.43
₹103.43
excl. GST
₹122.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB5946BT3G
₹103.43 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@56V
- Impedance(Zzt)
- 140Ω
- Zener Voltage(Range)
- 71.25V~78.75V
- Zener Voltage(Nom)
- 75V
- Impedance(Zzk)
- 2kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.182 g
Overview
Key features
- Zener Voltage Range - 3.3 V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Side or Bottom Circuit Board Mounting
- AEC - Q101 Qualified and PPAP Capable - SZ1SMB59xxT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
