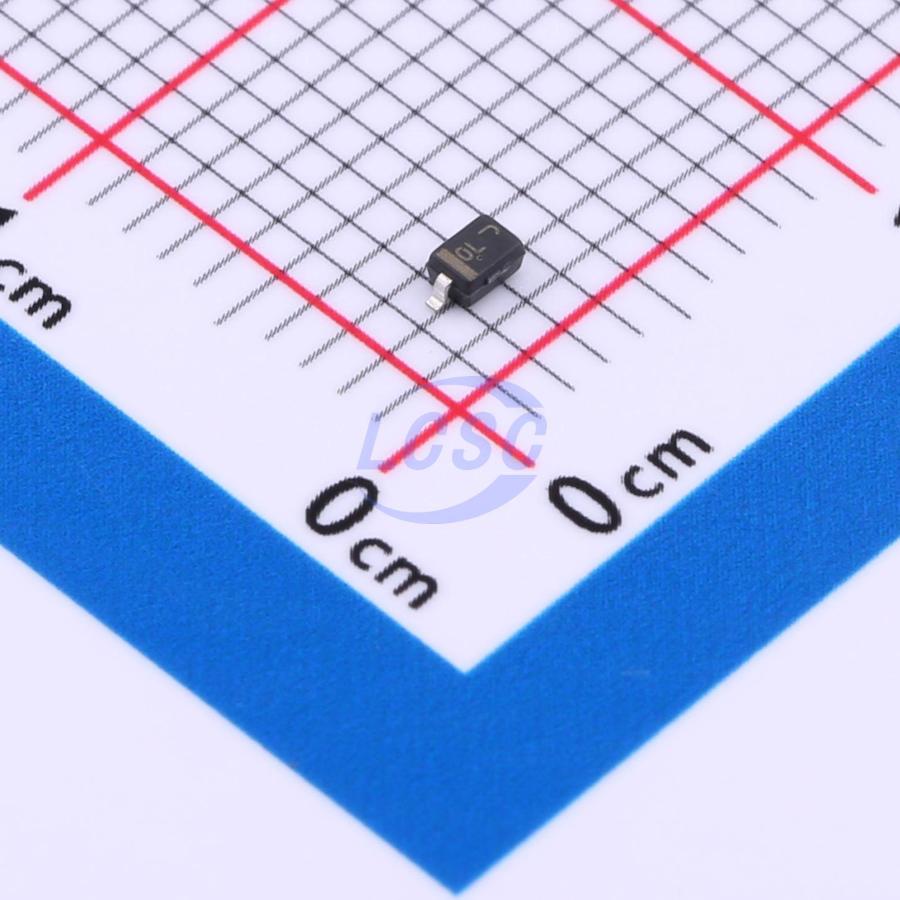

SZMM3Z10VT1G
Zener Diode Independent 10V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 10V 300mW SOD-323
- Manufacturer
- onsemi
- Manufacturer part #
- SZMM3Z10VT1G
- Store part #
- C894520
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C894520
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.19 | ₹90.95 |
| 50+ | ₹15.20 | ₹760.00 |
| 150+ | ₹13.71 | ₹2,056.50 |
| 500+ | ₹12.58 | ₹6,290.00 |
| 3,000+ | ₹11.06 | ₹33,180.00 |
| 6,000+ | ₹10.61 | ₹63,660.00 |
5 × ₹18.19
₹90.95
excl. GST
₹107.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMM3Z10VT1G
₹90.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 9.4V~10.6V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 160Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
This series of Zener diodes is packaged in a SOD- 323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range - 2.4 V to 75 V
- Steady State Power Rating of 300 mW
- Small Body Outline Dimensions: 0.067" x 0.049" (1.7 mm x 1.25 mm)
- Low Body Height: 0.035" (0.9 mm)
- Package Weight: 4.507 mg/Unit
- ESD Rating of Class 3.1 x 16 kV per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These are Pb- Free Devices
