NexperiaDatasheet (PDF)

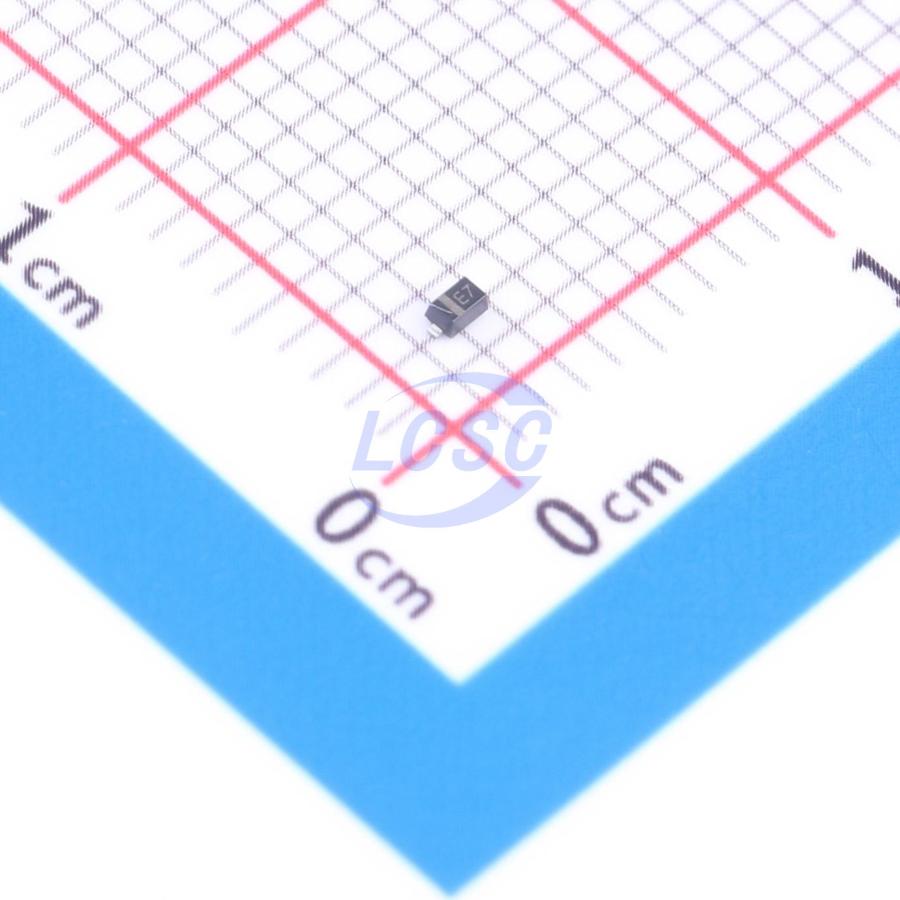

SZMM5Z11VT5GF
1 Independent 10.78V~11.22V 11V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- SZMM5Z11VT5GF
- Store part #
- C3737260
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C3737260
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.55 | ₹127.75 |
| 50+ | ₹24.94 | ₹1,247.00 |
| 150+ | ₹24.52 | ₹3,678.00 |
| 500+ | ₹24.11 | ₹12,055.00 |
5 × ₹25.55
₹127.75
excl. GST
₹150.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SZMM5Z11VT5GF
₹127.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Zener Voltage(Range)
- 10.78V~11.22V
- Zener Voltage(Nom)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
General- purpose Zener diodes in an SOD523 (SC- 79) ultra small flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 300mW
- Tolerance series: ± 2%
- Wide working voltage range: nominal 2.4V to 36V
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C11T-7#C460784DIODES · SOD-523 | DIODES | SOD-523 | 50 | ₹7.92 · 50 in stock | View |
 | BZX585-C11,115#C550628Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 11,990 | ₹6.51 · 11,990 in stock | View |
 | BZX584B11#C5293079JSCJ · SOD-523 | JSCJ | SOD-523 | 5,380 | ₹4.09 · 5,380 in stock | View |
 | EDZVT2R11B#C209628ROHM · SOD-523 | ROHM | SOD-523 | 8,960 | ₹4.60 · 8,960 in stock | View |
 | BZX584B11V#C968156YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 2,680 | ₹3.73 · 2,680 in stock | View |
