onsemiDatasheet (PDF)

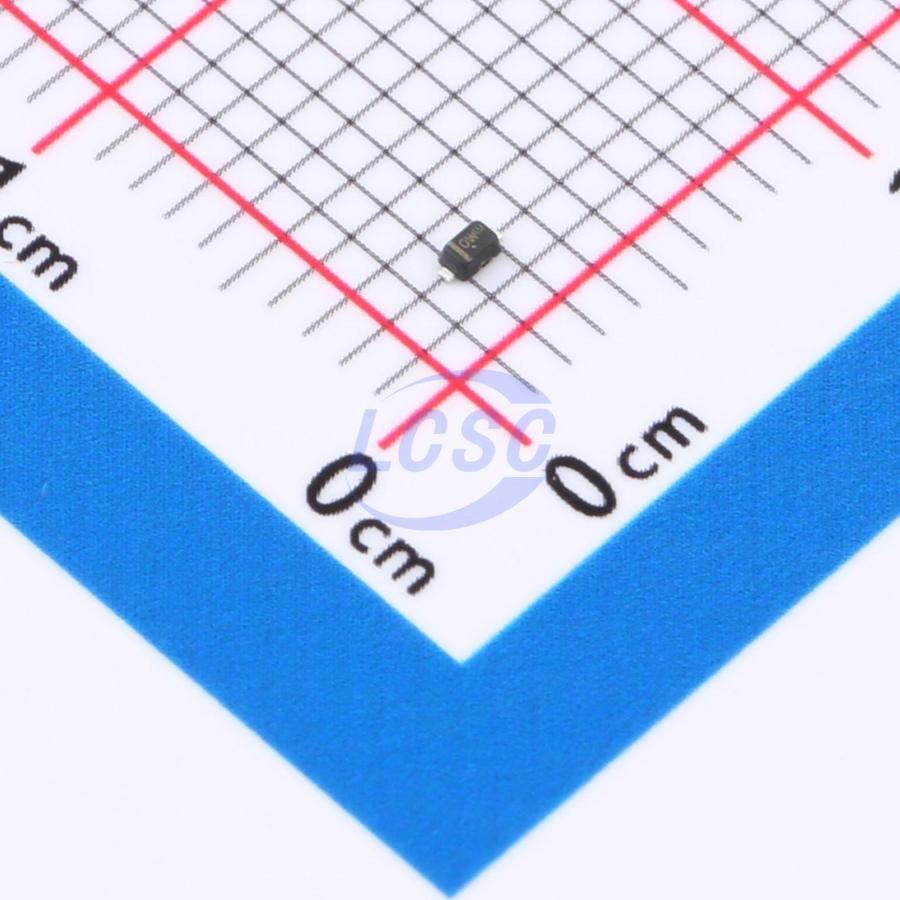

SZMM5Z18VT5G
1 Independent 16.8V~19.1V 18V SOD-523 Single Zener Diodes RoHS
SOD-523ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZMM5Z18VT5G
- Store part #
- C896582
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C896582
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.56 | ₹112.80 |
| 50+ | ₹22.07 | ₹1,103.50 |
| 150+ | ₹21.75 | ₹3,262.50 |
| 500+ | ₹21.42 | ₹10,710.00 |
5 × ₹22.56
₹112.80
excl. GST
₹133.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
SZMM5Z18VT5G
₹112.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@12.6V
- Impedance(Zzt)
- 45Ω
- Zener Voltage(Range)
- 16.8V~19.1V
- Zener Voltage(Nom)
- 18V
- Impedance(Zzk)
- 80Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM5Z18VT1G#C327501onsemi · SOD-523 | onsemi | SOD-523 | 3,205 | ₹10.56 · 3,205 in stock | View |
 | TCMM5Z18V#C5361335Tak Cheong · SOD-523 | Tak Cheong | SOD-523 | 480 | ₹2.80 · 480 in stock | View |
 | LM5Z18VT1G#C2916117LRC · SOD-523 | LRC | SOD-523 | 2,220 | ₹3.73 · 2,220 in stock | View |
 | MM5Z18#C52148493YTL · SOD-523 | YTL | SOD-523 | 2,900 | ₹1.87 · 2,900 in stock | View |
 | BZX584C18V#C968186YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 4,820 | ₹3.10 · 4,820 in stock | View |
