SZMMBZ5245BLT1G

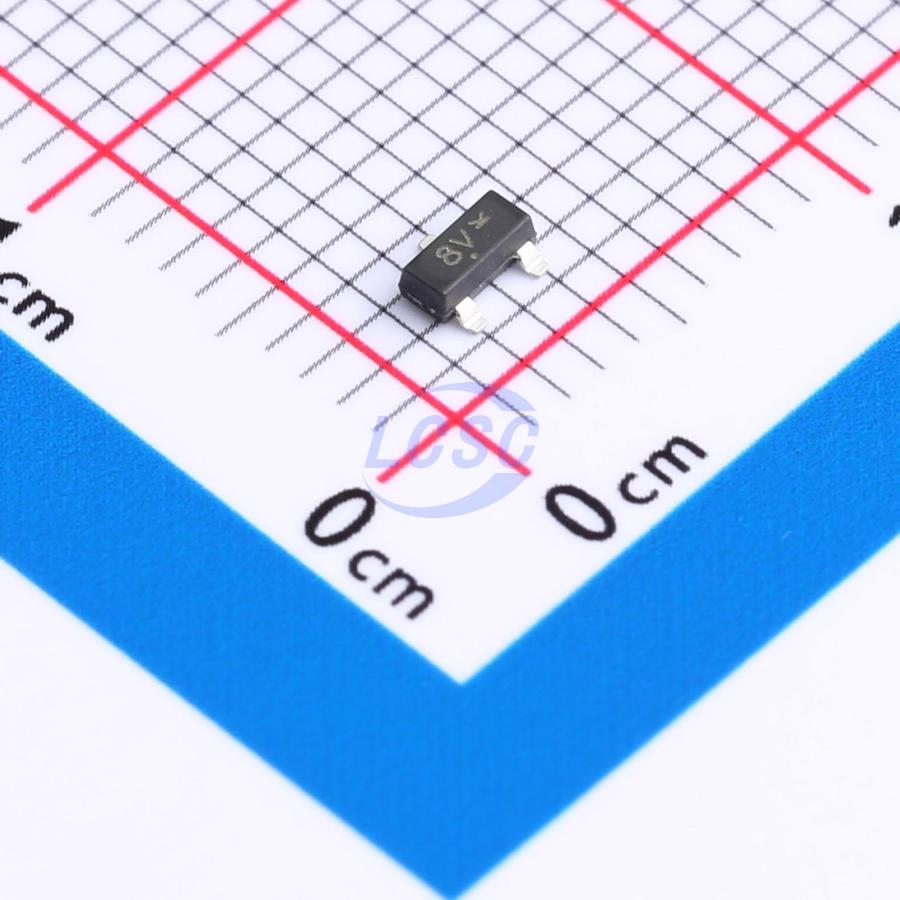

Zener Diode 1 Independent 15V 225mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 15V 225mW SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMBZ5245BLT1G
- Store part #
- C464131
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
380 in stock
#C464131
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.03 | ₹100.60 |
| 200+ | ₹3.97 | ₹794.00 |
| 600+ | ₹3.37 | ₹2,022.00 |
| 3,000+ | ₹3.02 | ₹9,060.00 |
| 9,000+ | ₹2.71 | ₹24,390.00 |
| 21,000+ | ₹2.55 | ₹53,550.00 |
20 × ₹5.03
₹100.60
excl. GST
₹118.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMBZ5245BLT1G
₹100.60 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 225mW
- Reverse Leakage Current (Ir)
- 100nA@11V
- Impedance(Zzt)
- 16Ω
- Zener Voltage(Range)
- 14.25V~15.75V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
This series of Zener diodes is offered in the convenient, surface mount plastic SOT- 23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- 225 mW Rating on FR- 4 or FR- 5 Board
- Zener Voltage Range - 2.4 V to 91 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 KV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS Compliant
