SZMMSZ10T1G

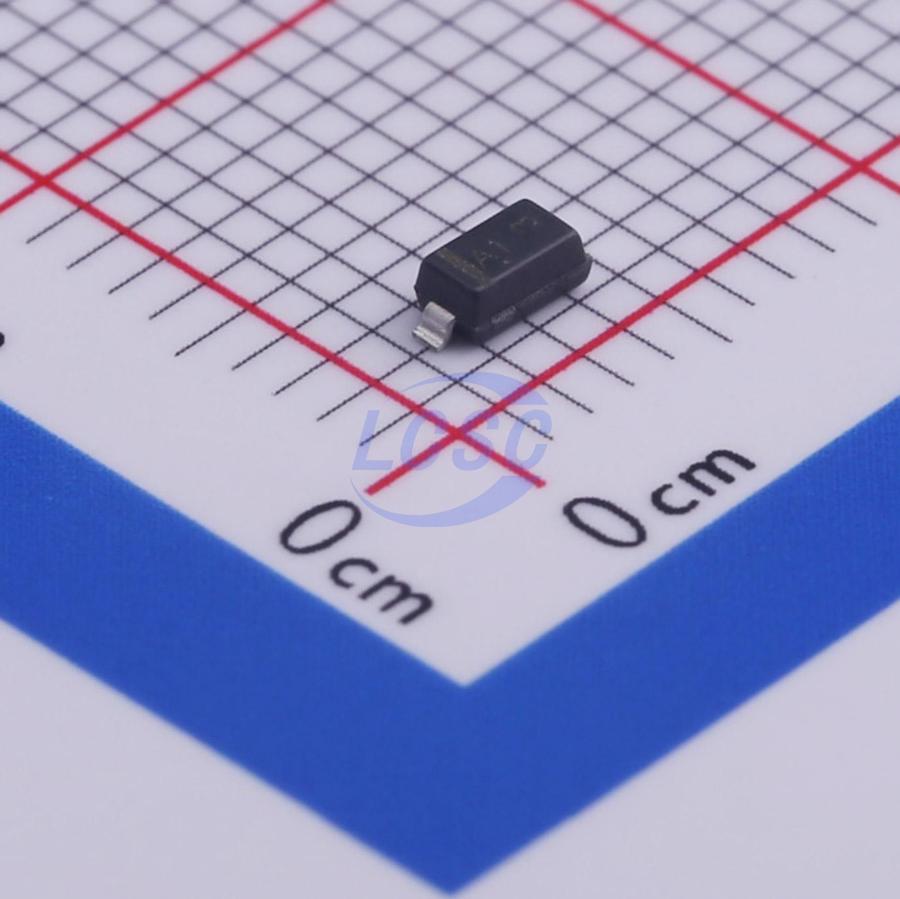

Zener Diode Independent 10V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 10V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ10T1G
- Store part #
- C464271
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,495 in stock
#C464271
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.98 | ₹64.90 |
| 50+ | ₹10.40 | ₹520.00 |
| 150+ | ₹9.12 | ₹1,368.00 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 3,000+ | ₹7.37 | ₹22,110.00 |
| 6,000+ | ₹6.99 | ₹41,940.00 |
5 × ₹12.98
₹64.90
excl. GST
₹76.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMSZ10T1G
₹64.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 200nA@7V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 9.5V~10.5V
- Zener Voltage(Nom)
- 10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD- 123 package. These devices provide a convenient alternative to the leadless 34- package style.
Key features
- 500 mW Rating on FR- 4 or FR- 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 56 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- AEC- Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- Pb- Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
