onsemiDatasheet (PDF)

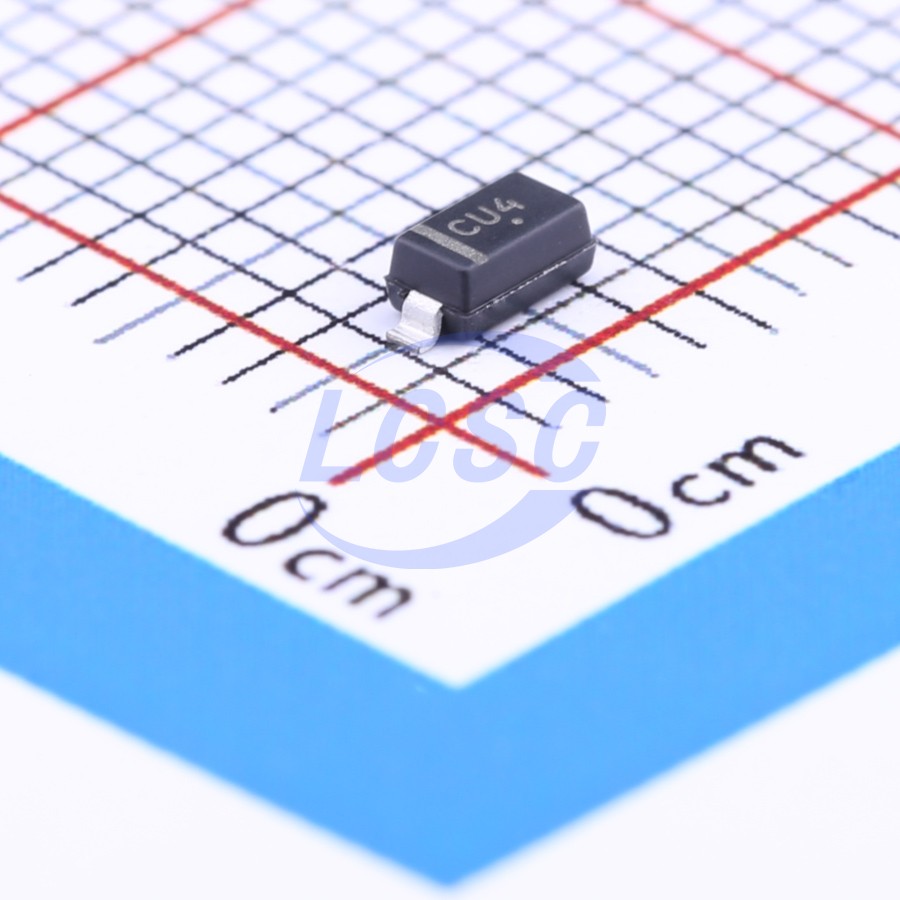

SZMMSZ4689T1G
Zener Diode Independent 5.1V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 5.1V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ4689T1G
- Store part #
- C145548
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
405 in stock
#C145548
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.68 | ₹83.40 |
| 50+ | ₹13.16 | ₹658.00 |
| 150+ | ₹11.40 | ₹1,710.00 |
| 500+ | ₹9.30 | ₹4,650.00 |
| 3,000+ | ₹8.24 | ₹24,720.00 |
| 6,000+ | ₹7.71 | ₹46,260.00 |
5 × ₹16.68
₹83.40
excl. GST
₹98.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMSZ4689T1G
₹83.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10uA@3V
- Zener Voltage(Range)
- 4.85V~5.36V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ4689 5.1V#C19269147JSCJ · SOD-123 | JSCJ | SOD-123 | 11,960 | ₹4.78 · 11,960 in stock | View |
 | MMSZ4689T1G#C236187onsemi · SOD-123 | onsemi | SOD-123 | 13,360 | ₹7.50 · 13,360 in stock | View |
 | MMSZ4689-G3-08#C3737488VISHAY · SOD-123 | VISHAY | SOD-123 | 2,970 | ₹28.72 · 2,970 in stock | View |
 | MMSZ4689T1G-TP#C46472967TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,550 | ₹2.17 · 1,550 in stock | View |
 | MMSZ4689T3G#C513127onsemi · SOD-123 | onsemi | SOD-123 | 375 | ₹12.69 · 375 in stock | View |
