onsemiDatasheet (PDF)

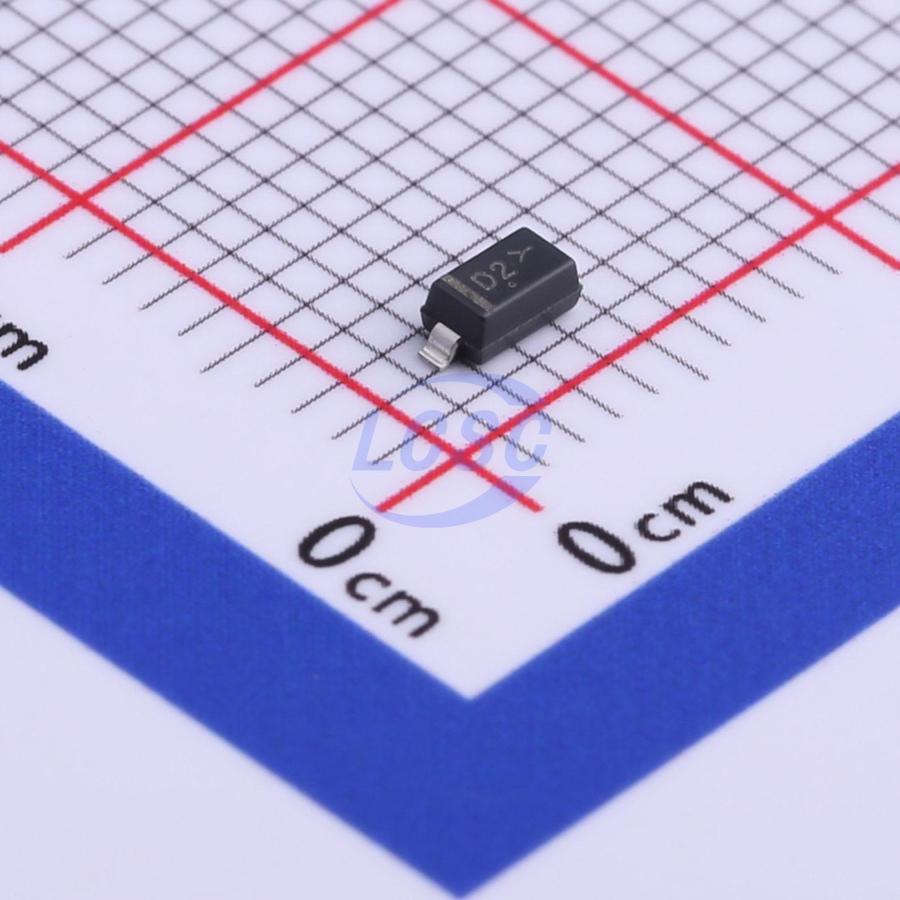

SZMMSZ5227BT1G
Zener Diode Independent 3.6V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 3.6V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ5227BT1G
- Store part #
- C513072
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C513072
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.82 | ₹99.10 |
| 50+ | ₹16.44 | ₹822.00 |
| 150+ | ₹14.75 | ₹2,212.50 |
| 500+ | ₹13.49 | ₹6,745.00 |
| 3,000+ | ₹12.48 | ₹37,440.00 |
| 6,000+ | ₹11.97 | ₹71,820.00 |
5 × ₹19.82
₹99.10
excl. GST
₹116.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMSZ5227BT1G
₹99.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 15uA
- Impedance(Zzt)
- 24Ω
- Zener Voltage(Range)
- 3.42V~3.78V
- Zener Voltage(Nom)
- 3.6V
- Impedance(Zzk)
- 1.7kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMSZ5227BT1G#C131753LRC · SOD-123 | LRC | SOD-123 | 380 | ₹2.71 · 380 in stock | View |
 | MMSZ5227B_R1_00001#C268589PANJIT · SOD-123 | PANJIT | SOD-123 | 3,660 | ₹5.68 · 3,660 in stock | View |
 | MMSZ5227BT1G-TP#C46472939TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,900 | ₹1.20 · 2,900 in stock | View |
 | MMSZ5227B#C22395553R+O · SOD-123 | R+O | SOD-123 | 14,100 | ₹2.67 · 14,100 in stock | View |
 | MMSZ5227B#C2903820LGE · SOD-123 | LGE | SOD-123 | 2,440 | ₹2.92 · 2,440 in stock | View |
