onsemiDatasheet (PDF)

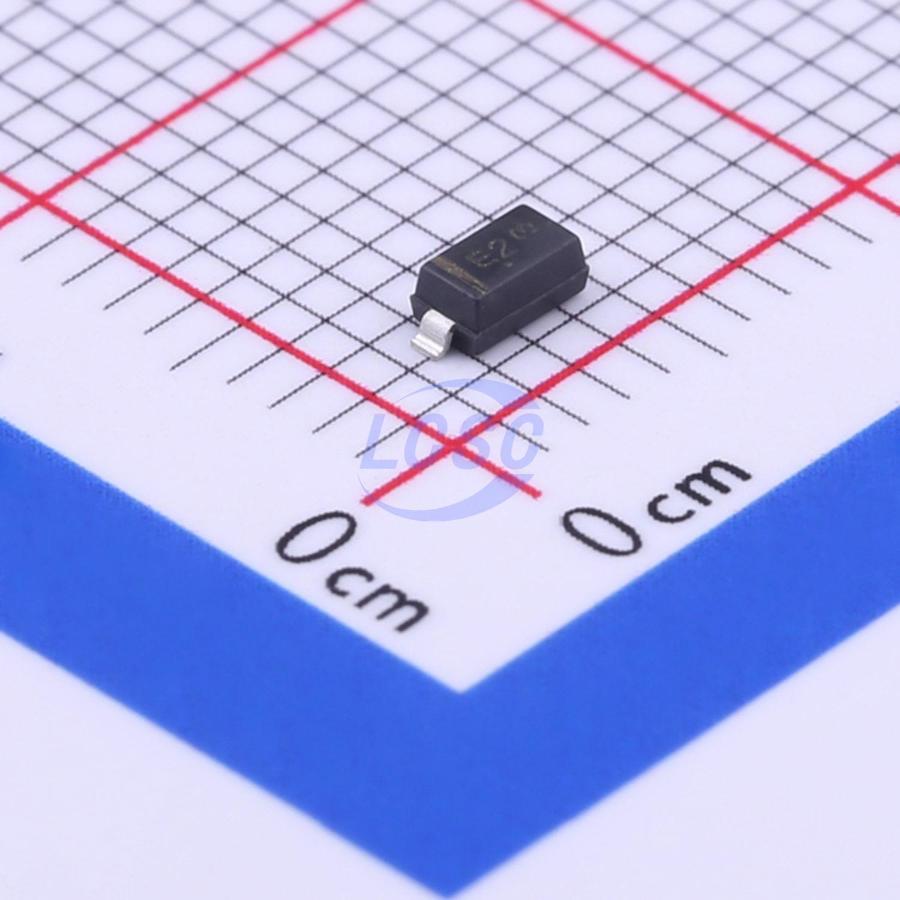

SZMMSZ5232BT1G
Zener Diode Independent 5.6V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 5.6V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ5232BT1G
- Store part #
- C403851
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C403851
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.14 | ₹65.70 |
| 50+ | ₹12.74 | ₹637.00 |
| 150+ | ₹12.48 | ₹1,872.00 |
| 500+ | ₹12.21 | ₹6,105.00 |
5 × ₹13.14
₹65.70
excl. GST
₹77.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMSZ5232BT1G
₹65.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 5uA@3V
- Impedance(Zzt)
- 11Ω
- Zener Voltage(Range)
- 5.32V~5.88V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 1.6kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MMSZ5232B_R1_00301#C24833830PANJIT · SOD-123 | PANJIT | SOD-123 | 2,740 | ₹3.56 · 2,740 in stock | View | |
 | MMSZ5232BQ#C2942592YANGJIE · SOD-123 | YANGJIE | SOD-123 | 680 | ₹5.77 · 680 in stock | View |
 | LMSZ5232BT1G#C383240LRC · SOD-123 | LRC | SOD-123 | 1,840 | ₹4.47 · 1,840 in stock | View |
 | MMSZ5232BT1G-TP#C46472943TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,100 | ₹2.26 · 1,100 in stock | View |
 | MMSZ5232B#C5339884YANGJIE · SOD-123 | YANGJIE | SOD-123 | 620 | ₹2.70 · 620 in stock | View |
