onsemiDatasheet (PDF)

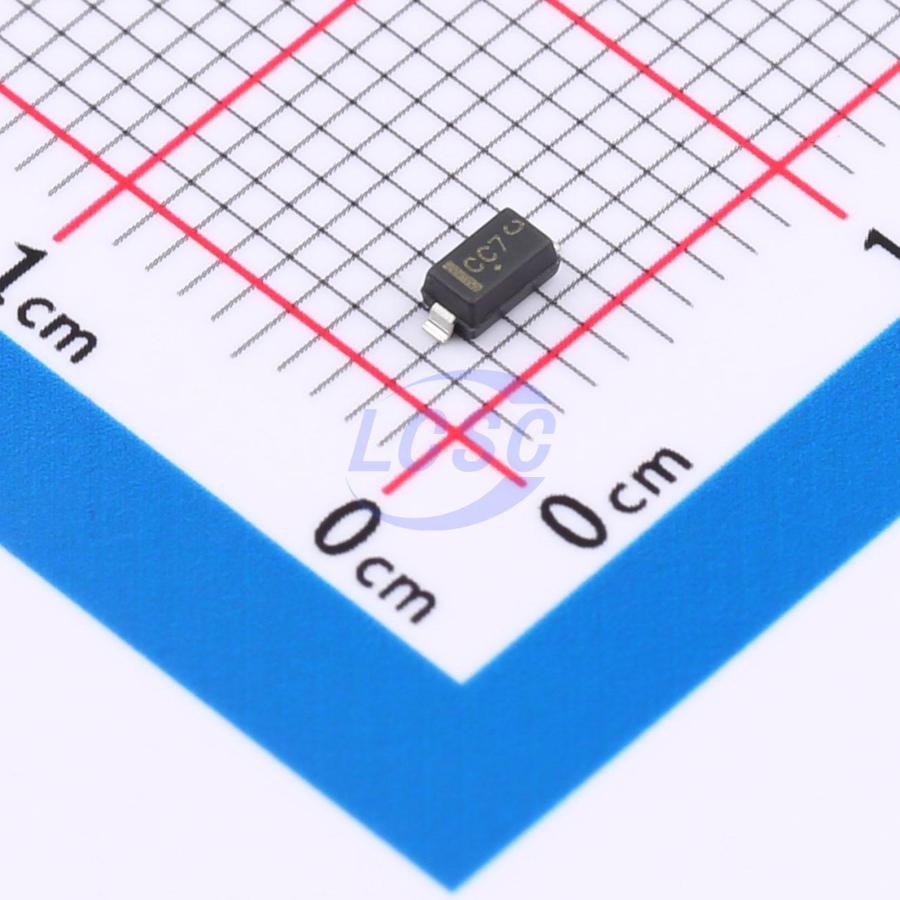

SZMMSZ5245ET1G
Zener Diode Independent 15V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 15V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ5245ET1G
- Store part #
- C894682
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C894682
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.67 | ₹148.35 |
| 50+ | ₹23.62 | ₹1,181.00 |
| 150+ | ₹21.02 | ₹3,153.00 |
| 500+ | ₹17.78 | ₹8,890.00 |
| 3,000+ | ₹16.34 | ₹49,020.00 |
| 6,000+ | ₹15.47 | ₹92,820.00 |
5 × ₹29.67
₹148.35
excl. GST
₹175.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMSZ5245ET1G
₹148.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@11V
- Impedance(Zzt)
- 16Ω
- Zener Voltage(Range)
- 14.25V~15.75V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5245BT1G#C129730onsemi · SOD-123 | onsemi | SOD-123 | 64,220 | ₹6.32 · 64,220 in stock | View |
 | LMSZ5245BT1G#C131742LRC · SOD-123 | LRC | SOD-123 | 5,700 | ₹3.85 · 5,700 in stock | View |
 | MMSZ5245BQ#C2942595YANGJIE · SOD-123 | YANGJIE | SOD-123 | 800 | ₹4.54 · 800 in stock | View |
 | MMSZ5245B_R1_00001#C282316PANJIT · SOD-123 | PANJIT | SOD-123 | 6,300 | ₹4.54 · 6,300 in stock | View |
 | BZT52C15Q#C2857059JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 43,160 | ₹2.18 · 43,160 in stock | View |
