SZMMSZ5250BT1G

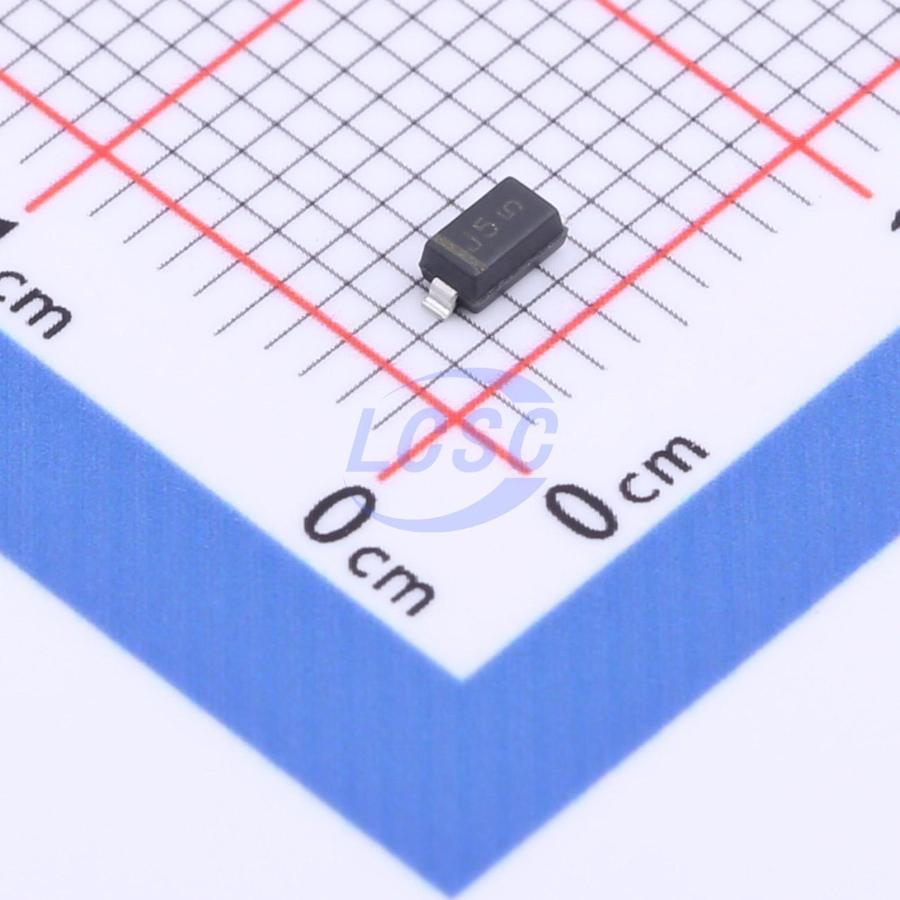

Zener Diode 20V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 20V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ5250BT1G
- Store part #
- C555487
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,645 in stock
#C555487
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.63 | ₹58.15 |
| 50+ | ₹9.41 | ₹470.50 |
| 150+ | ₹8.30 | ₹1,245.00 |
| 500+ | ₹7.45 | ₹3,725.00 |
| 3,000+ | ₹6.79 | ₹20,370.00 |
| 6,000+ | ₹6.46 | ₹38,760.00 |
5 × ₹11.63
₹58.15
excl. GST
₹68.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMSZ5250BT1G
₹58.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@15V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 19V~21V
- Zener Voltage(Nom)
- 20V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD- 123 package. These devices provide a convenient alternative to the leadless 34- package style. Zener voltage in this series are specified with device junction in thermal equilibrium.
Key features
- 500 mW Rating on FR- 4 or FR- 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 110 V @ Thermal Equilibrium
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- General Purpose, Medium Current
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These are Pb- Free Devices
