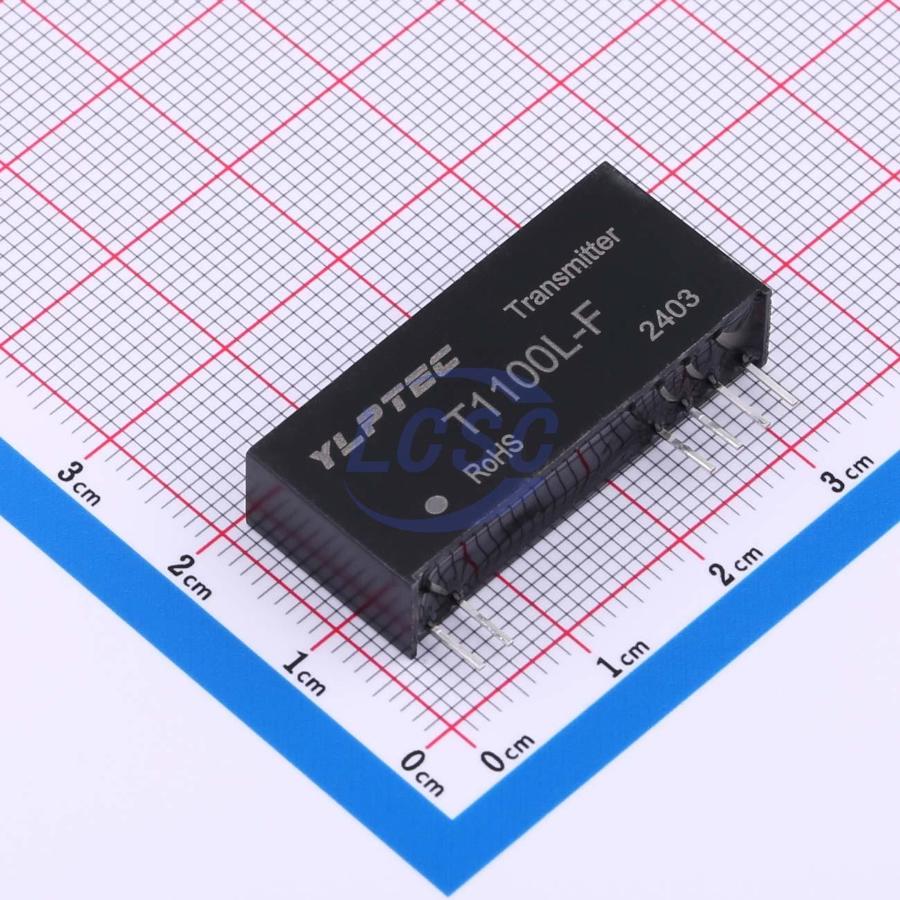

YLPTEC

T1100L-F

Isolated Module DC DC Converter 1 Output 4mA -20mA 10V~24V Input

SIP-6RoHSActive

Signal conditioning module, dual-end isolation

Manufacturer: YLPTEC
Manufacturer part #: T1100L-F
Store part #: C19724423
Package / case: SIP-6
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23 in stock

#C19724423

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹1,810.99	₹1,810.99
10+	₹1,725.48	₹17,254.80
30+	₹1,577.24	₹47,317.20
105+	₹1,447.67	₹1,52,005.35

Quantity (min 1)

1 × ₹1,810.99

₹1,810.99

excl. GST

₹2,136.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 15 per tube

T1100L-F

₹1,810.99 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 10V~24V
Operating Temperature: -25℃~+71℃
Voltage - Supply: 10V~24V
Number of Outputs: 1
Iout: 4mA;20mA
Height: 14.5mm
Isolation Voltage(Vrms): 3kV
Features: Over Current Protection
Length: 32mm
Width: 7.9mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 15 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 9 g

Overview

Key features

Two-terminal isolation (signal input and signal output mutually isolated)
Accuracy class (0.3% F.S.)
High linearity (0.1% F.S.)
High isolation (3kVDC/60s between input and output terminals)
Low signal voltage drop (3V typ: at 20mA input)
Ultra-low temperature drift (35PPM/℃)
Industrial grade (operating temperature range: -25°C to +71°C)
