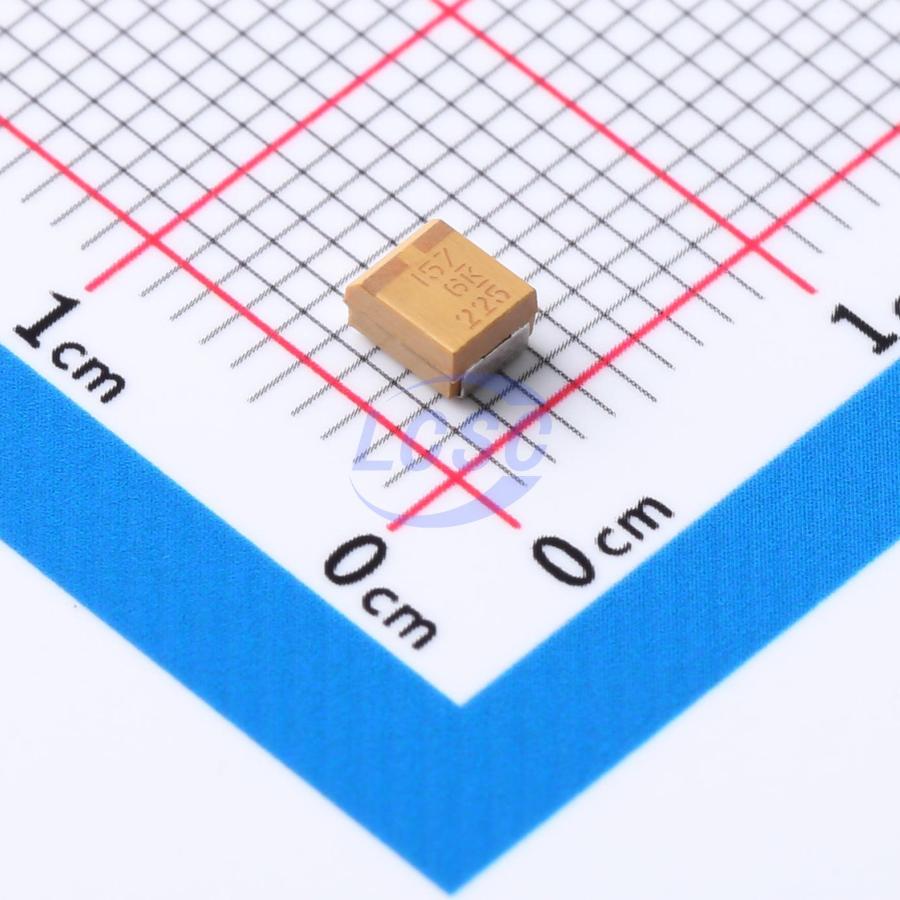

T490B157M006ATE500

The KEMET T490 is specifically designed for customer product applications requiring low-temperature processing. Its leads are 100% matte tin-plated, the green molding compound is used, and it is RoHS compliant. The T490 achieves Moisture Sensitivity Level (MSL) 1 per J STD 020, meaning unlimited floor life at temperatures ≤30°C and 85% relative humidity. Sn/Pb terminations are available upon request for any part number. Gold-plated terminations are also available for conductive epoxy attachment processes. The standard packaging format for these devices is tape and reel per EIA 481, compatible with all tape-and-reel placement equipment.

Applications

• Typical applications include decoupling and filtering in communication terminal applications such as mobile phones and consumer mobile devices.

Key features

• Standard EIA 481 tape-and-reel packaging
• Symmetrical compatible terminations
• Optional gold-plated terminations
• Laser-marked case
• Suitable for 3x 260°C reflow soldering
• Halogen-free epoxy resin
• Capacitance range: 47 - 470μF
• Tolerance: ±20%
• Rated voltage: 4 - 10 VDC
• High reliability: 0.2% change per 1000 hours at 85°C, 0.5VR
• Small and low-profile case size
• RoHS compliant with lead-free terminations
• MSL Level 1 at reflow temperature ≤260°C
• Operating temperature range: -55°C ~ +125°C
