VBsemi ElecDatasheet (PDF)

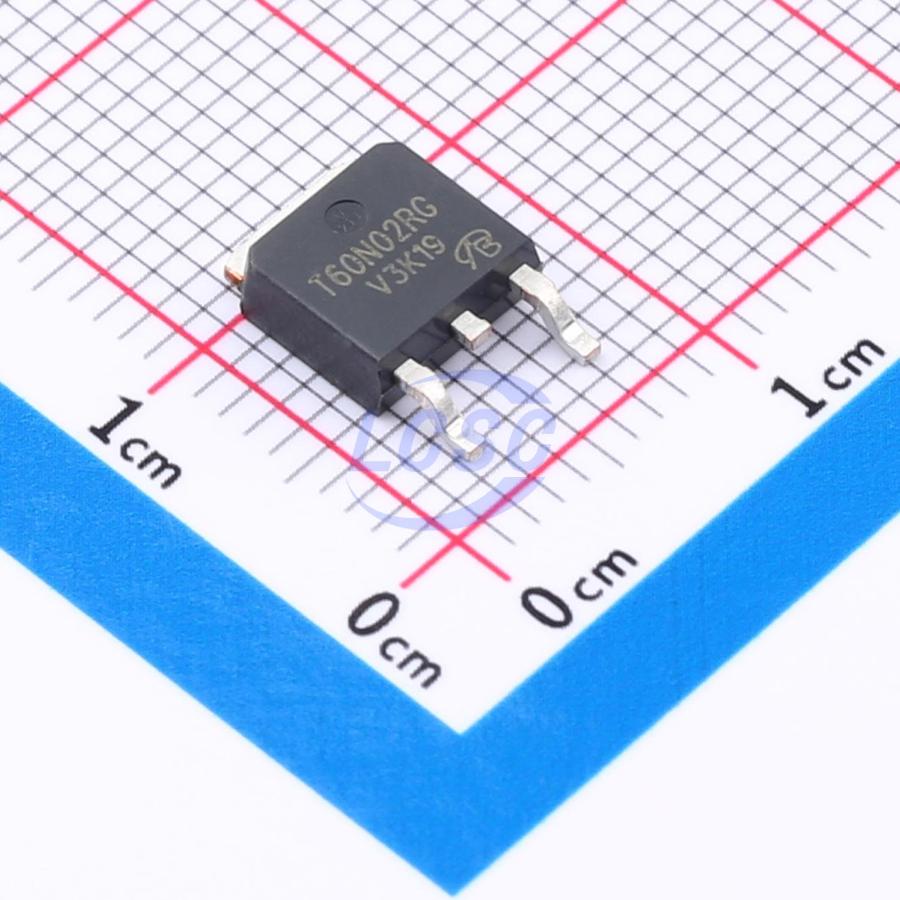

T60N02RG-VB
N-Channel 30V 80A Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 80A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- T60N02RG-VB
- Store part #
- C19632174
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C19632174
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.92 | ₹67.92 |
| 10+ | ₹56.61 | ₹566.10 |
| 30+ | ₹51.82 | ₹1,554.60 |
| 100+ | ₹45.72 | ₹4,572.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹67.92
₹67.92
excl. GST
₹80.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
T60N02RG-VB
₹67.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 2.201nF
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 107nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- OR Logic Control - Server - DC-DC Conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
